Description Reviews

Description:

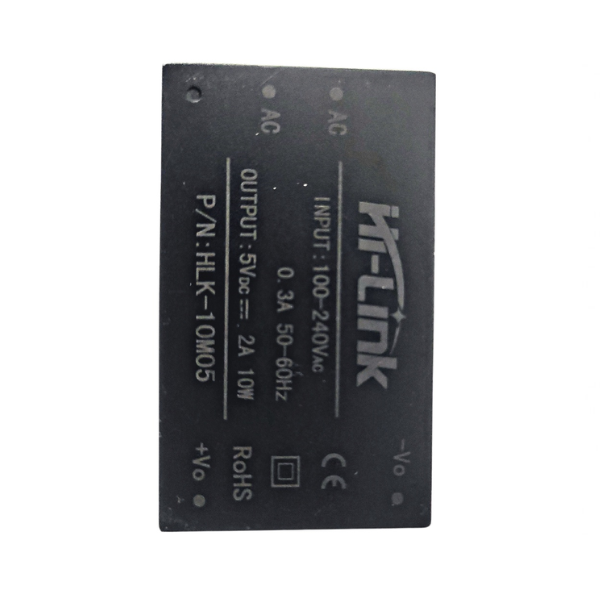

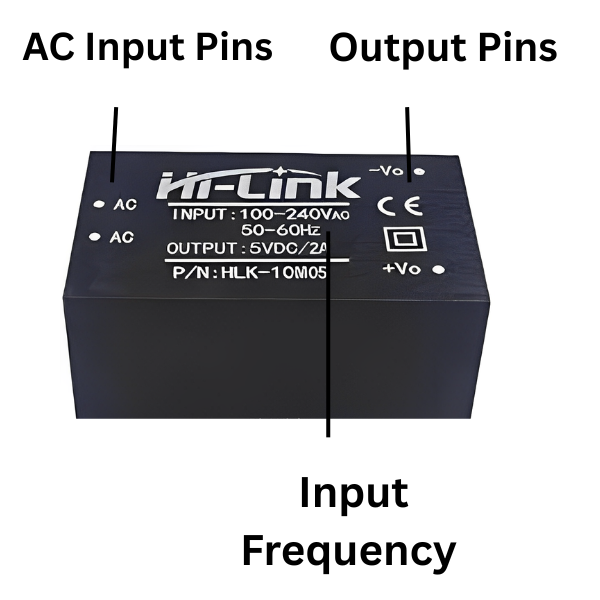

HLK-10M05 Hi-Link 5V 10W AC to DC Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 5V DC from 100V AC 240V AC and has a power rating of 10 Watt. This makes it perfect for small projects that need a 5 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.

Features:

All voltage input (AC: 100 ~ 240V)
Technical indicators: Single bit
Working temperature: 20-60 +degree
Storage temperature: + 80-40 -degree
Relative humidity: 5-95%
The cooling way: Natural cooling

Package Includes:

1 x HLK-HLK-10M05 Hi-Link 5V 10W AC to DC Power Supply Module

DATA SHEET AND USECASE

Key Features:

Wide Input Voltage Range: Supports 85–264V AC or 70–350V DC, accommodating global mains voltages.
Output Specifications: Provides a stable 5V DC output with a maximum current of 2A.
High Efficiency: Features high efficiency and low power consumption, with no-load loss less than 0.1W.
Protection Mechanisms: Includes output overload and short circuit protection with self-recovery capabilities.

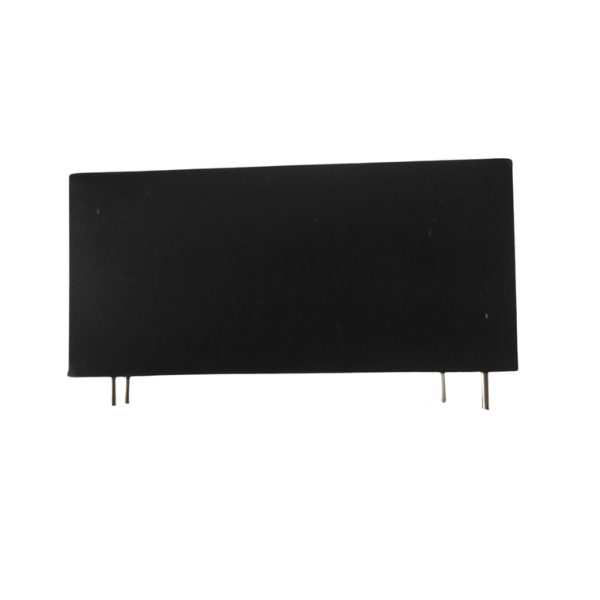

Compact Design: Designed for PCB mounting with a plastic enclosure, offering an ultra-thin and ultra-small footprint.
Compliance: Meets UL and CE requirements, and is designed to pass EMC and safety tests.
