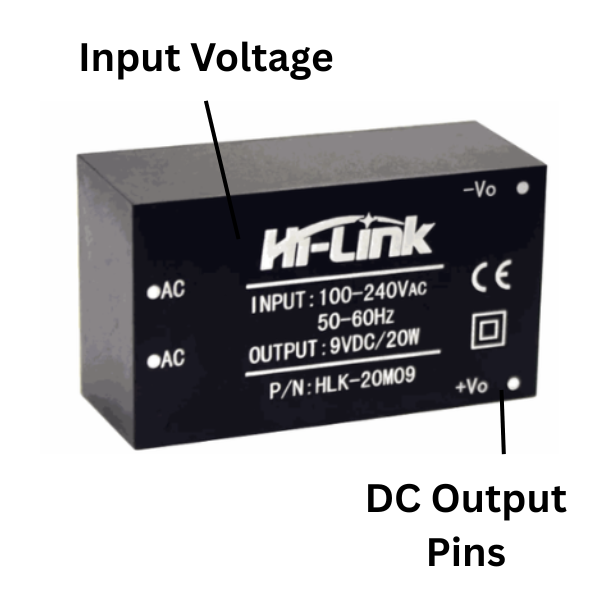

Hi Link HLK-20M09 9V/20W Switch Power Supply Module

The Hi-Link HLK-20M09 is a compact and efficient switch-mode power supply module designed to convert standard AC input voltage (90V-264V) into a stable 9V DC output. It's ideal for powering various electronic devices and projects that require a reliable and consistent 9V power source.

Key Features:

• Wide Input Voltage Range: Operates seamlessly with both 110V and 220V AC input, making it suitable for global use.
• High Efficiency: Minimizes power loss during the conversion process, resulting in efficient energy utilization.
• Compact Size: Its small footprint allows for easy integration into space-constrained projects and devices.
• Overload and Short Circuit Protection: Built-in safety mechanisms to protect the module and connected devices from damage.
• Low Ripple and Noise: Provides a clean and stable DC output, minimizing interference with sensitive electronics.
• Reliable and Durable: Designed for long-term operation with high reliability and durability.

Specifications:

• Input Voltage: 90V ~ 264V AC
• Output Voltage: 9V DC
• Output Current: 2.2A (Maximum)
• Output Power: 20W
• Efficiency: Up to 80%
• Ripple and Noise: Low
• Operating Temperature: -20°C to +60°C
• Dimensions: Compact and varies depending on the specific model
• Certifications: UL, CE

DATA SHEET AND USECASE

Key Features:

• Input Voltage: 100–240V AC
• Output Voltage: 9V DC
• Output Power: 20W
• Efficiency: Up to 91%
• Isolation Voltage: 3000V
• Operating Temperature Range: -25°C to +70°C
• Protection Features: Overcurrent, short circuit, input overvoltage, and input under voltage protections
• Certifications: CE, FCC
