Hi Link HLK-5M03 3.3V/5W Switch Power Supply Module

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

64% OFF

~~₹99~~ ₹37
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

Description:

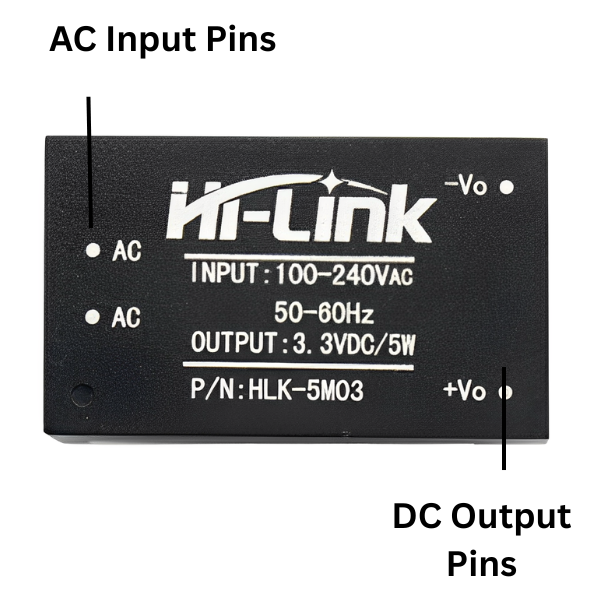

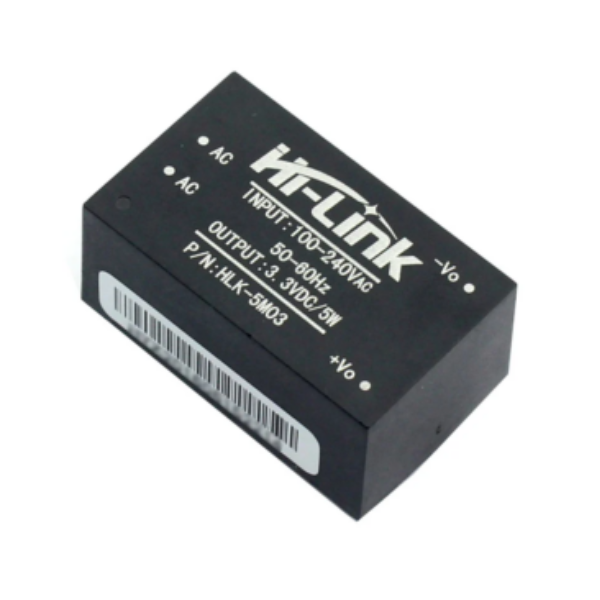

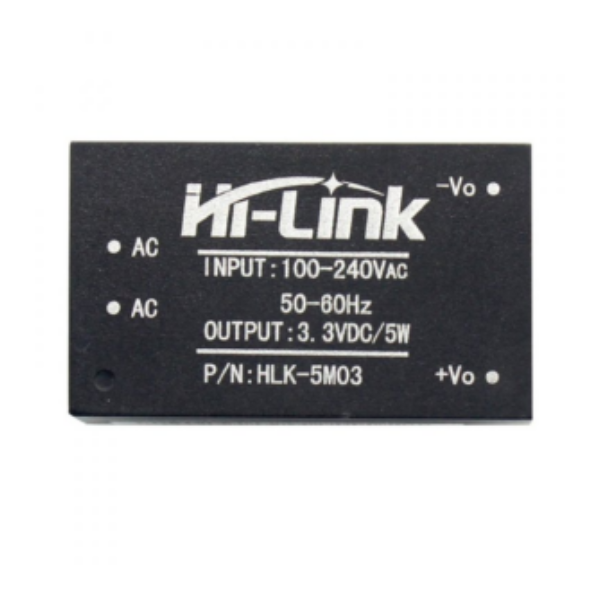

HLK-5M03 3.3V/5W Switch Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 3.3V DC from 100V AC – 240V AC and has a power rating of 5Watt. This makes it perfect for small projects that need a 3.3 volt supply from mains. This power supply module replaces lots of parts from the traditional power supply like diodes, voltage regulators,s, and transformers.

Features:

All voltage input (AC): 90 ~ 264V
Technical indicators: Single bit
Working temperature: – 20-60 +degree
Storage temperature: -40-+80 Degree Celsius
Relative humidity: 5-95%
The cooling way: Natural cooling
The atmospheric pressure: 80-106Kpa

Package Includes:

1 x HLK-5M03 3.3V/5W Switch Power Supply Module

DATA SHEET AND USECASE

Key Features:

Wide Input Voltage Range: Supports AC inputs from 90V to 264V, accommodating global mains voltages.
Stable 3.3V Output: Delivers a consistent 3.3V DC output suitable for powering various electronic devices and microcontrollers.
High Efficiency: Designed for high efficiency, reducing energy loss and heat generation.
Compact Design: Its small form factor allows for easy integration into space-constrained applications.
Safety Features: Includes built-in protections against over-current and short circuits, enhancing the safety and reliability of connected devices.
