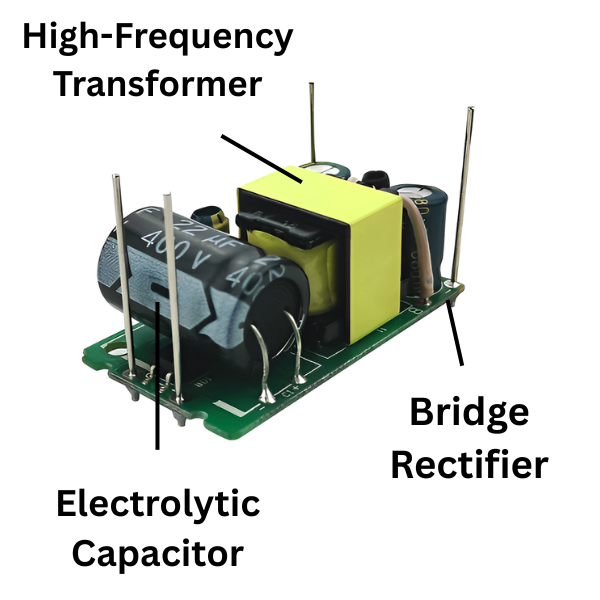

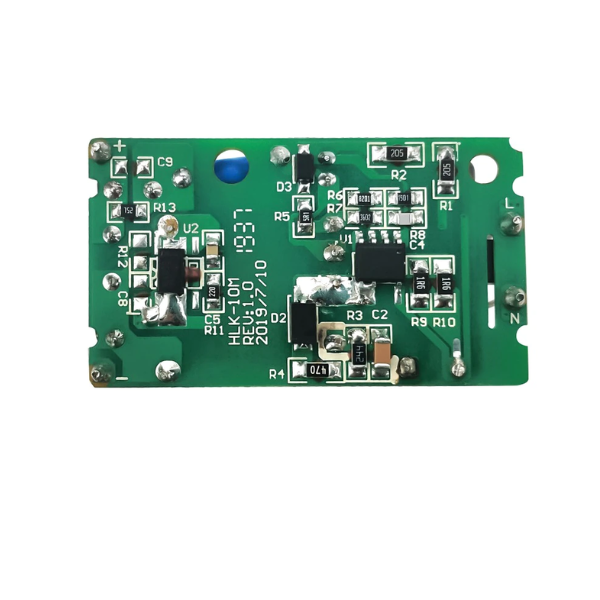

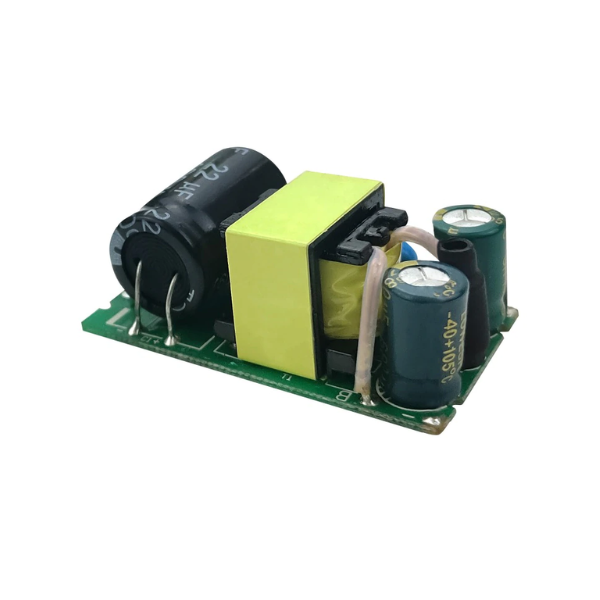

HLK-10M12 Hi-Link 12V 10W AC to DC Power Supply Module

The HLK-10M12 is a compact and efficient AC-DC power supply module from Hi-Link, designed to convert standard AC mains voltage (90-264V AC) into a stable 12V DC output.

Key Features:

• Wide Input Voltage Range: Operates reliably across a broad range of input voltages, making it suitable for global use.
• High Efficiency: Minimizes power loss during the conversion process, resulting in efficient energy utilization.
• Low Ripple and Noise: Provides clean and stable DC output, crucial for sensitive electronic devices.
• Overload and Short Circuit Protection: Built-in safety mechanisms to protect the module and connected devices from damage.
• Compact Size: Its small footprint allows for easy integration into various electronic projects and devices.
• Reliable and Durable: Designed for long-term operation with high reliability and durability.

Specifications:

• Input Voltage: 90V ~ 264V AC
• Output Voltage: 12V DC
• Output Current: 830mA (Maximum)
• Output Power: 10W
• Efficiency: High efficiency
• Ripple and Noise: Low ripple and noise levels
• Operating Temperature: -25°C to +60°C
• Dimensions: Compact size
• Certifications: May carry relevant safety certifications (e.g., UL, CE)

DATA SHEET AND USECASE

Technical Specifications:

• Input Voltage: 85-264VAC / 70-350VDC

• Output Voltage: 12V DC

• Output Current: Up to 0.83A

• Output Power: 10W

• Ripple & Noise: ≤70mVp-p

• Operating Temperature: -25°C to +60°C

• Storage Temperature: -40°C to +80°C

• Humidity: 5% to 95% RH

• Dimensions: 46.9mm x 27.8mm x 21.8mm
