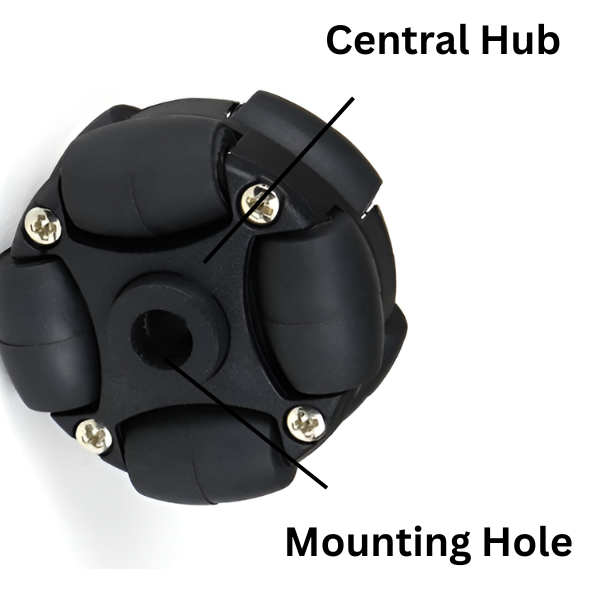

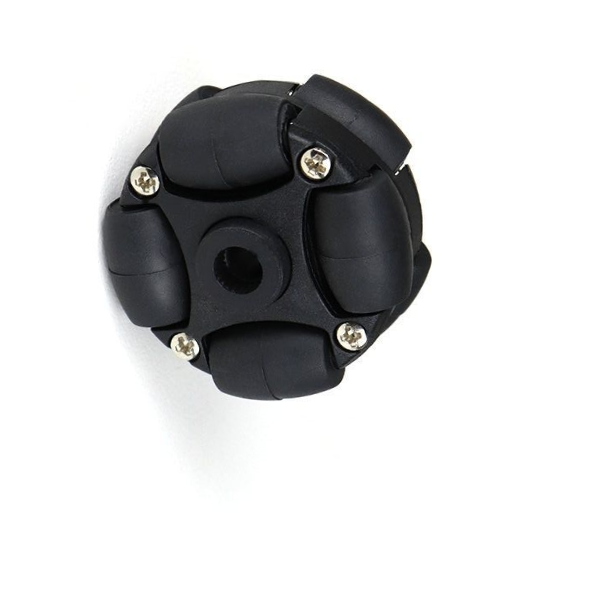

1.5Inch 38mm 90ᵒPlastic Omni Wheel

Description:

The 1.5Inch 38mm 90ᵒPlastic Omni Wheel is a versatile and durable wheel designed for use in robotic applications. Its unique 90-degree angled design allows for omnidirectional movement, enabling robots to move freely in any direction without changing their orientation.

Key Features:

• Omnidirectional Movement: The 90-degree angled design allows for movement in any direction, providing maximum maneuverability.
• 1.5 Inch Diameter: The wheel has a diameter of 1.5 inches (38mm), making it suitable for a variety of robot sizes.
• Plastic Construction: Made from durable plastic, ensuring long-lasting performance and resistance to wear and tear.
• Versatile Applications: Can be used in a wide range of robotic applications, including line followers, obstacle avoiders, and educational robots.
• Easy Installation: Simple and straightforward installation process, making it convenient to integrate into your projects.

DATA SHEET AND USECASE

Key Specifications:

• Diameter: 38mm
• Width: 23.4mm
• Axial Width: 4mm
• Number of Plates: 2
• Number of Rollers: 8
• Body Material: Plastic
• Roller Material: Thermoplastic Rubber (TPR)
• Net Weight: 20g
• Load Capacity: 2kg
