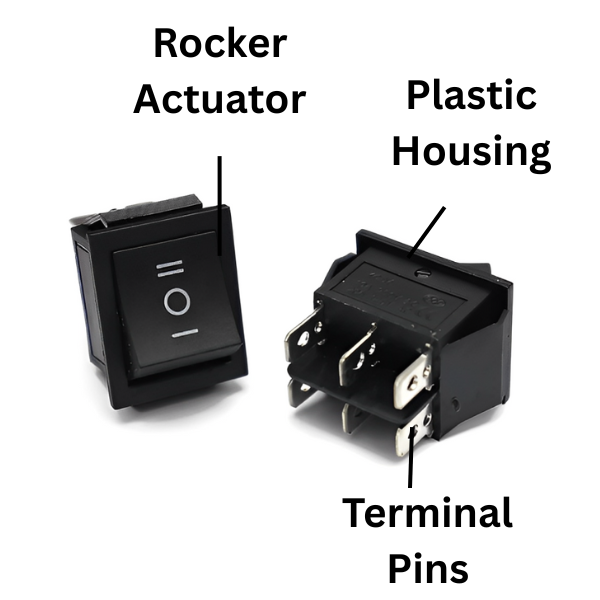

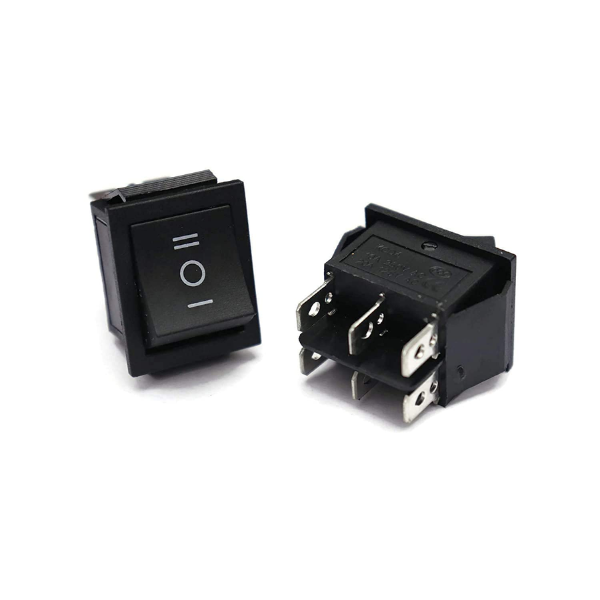

16A 250V DPDT Rocker Switch (pack of 2)

Description:

A 16A 250V DPDT (Double Pole Double Throw) rocker switch is a type of electrical switch commonly used in various applications. It has two poles, each with two positions, allowing it to control two circuits simultaneously.

Key Features:

• Rating: 16A 250V AC, suitable for high-power applications.
• DPDT Configuration: Controls two circuits independently.
• Rocker Design: Easy to operate with a smooth rocking motion.
• Durable Construction: Built to withstand frequent use and harsh environments.
• Versatile Applications: Suitable for a wide range of electrical and electronic projects.

Specifications:

• Type: DPDT (Double Pole Double Throw)
• Current Rating: 16A
• Voltage Rating: 250V AC
• Number of Poles: 2
• Number of Positions: 3 (ON-OFF-ON)
• Mounting: Panel mount
• Terminal Type: Screw terminals
• Color: Black (usually)

Package Includes:

2 X 16A 250V DPDT Rocker Switch

DATA SHEET AND USECASE

Key Specifications:

• Model Number: KCD4-303
• Switching Mode: ON-OFF-ON
• Structure: DPDT
• Current Rating: 16A at 250VAC
• Contact Resistance: ≤ 50 mΩ
• Insulation Resistance: ≥ 100 MΩ
• Withstand Voltage: 1500VAC for 1 minute
• Switching Life: ≥ 10,000 cycles
• Material: Plastic and Metal
• Dimensions: Length: 35 mm, Width: 25 mm, Height: 34 mm
