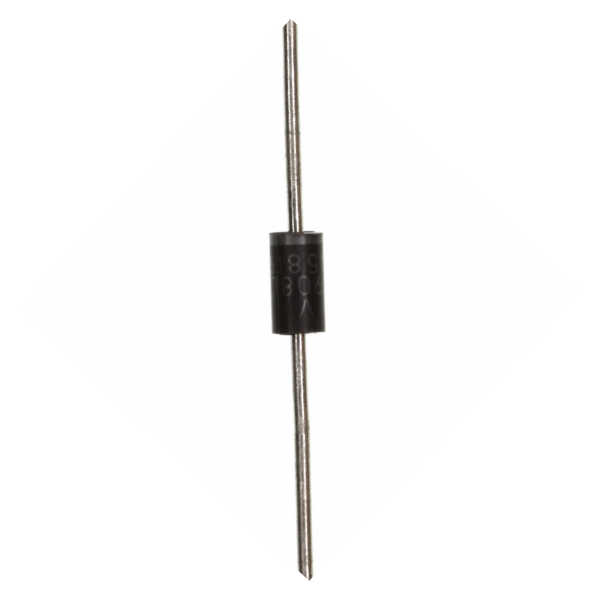

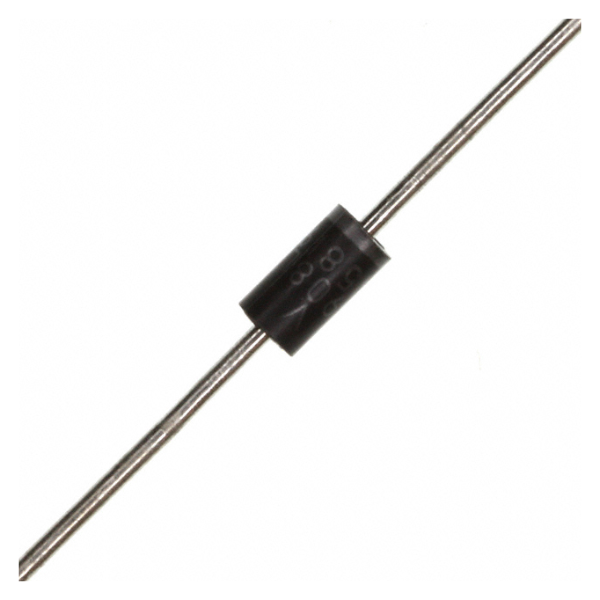

1N5817 Diode - Schottky 20 V 1A Through Hole DO-41 Pack 10

1N5817 Schottky Barrier Rectifier Diode (20-Pack)

Enhance your electronic circuits with the 1N5817 Schottky Barrier Rectifier Diode. This high-performance component is ideal for applications requiring speed, efficiency, and reliability.

Key Features:

• Fast Switching Speed: Ideal for high-frequency applications and switching circuits.
• Low Forward Voltage Drop: Minimizes power dissipation and improves efficiency.
• High Current Capability: 1A average rectified forward current.
• Rugged Construction: Built to withstand demanding operating conditions.
• Compact Size: Easy to integrate into your designs.

Applications:

• Switching power supplies
• Inverters
• DC-DC converters
• Motor control circuits
• High-frequency rectification

Specifications:

• Type: Schottky Rectifier Diode
• Package: DO-41
• Mounting: Through Hole
• Reverse Voltage : 20V
• Average Rectified Current : 1A
• Max. Reverse Current : 1µA
• Max. Forward Voltage Drop : 0.45V
• Reverse Recovery Time : 5ns
• Operating Junction Temperature Range: -65°C to +150°C

Experience the power and efficiency of the 1N5817 Schottky Barrier Rectifier Diode.
