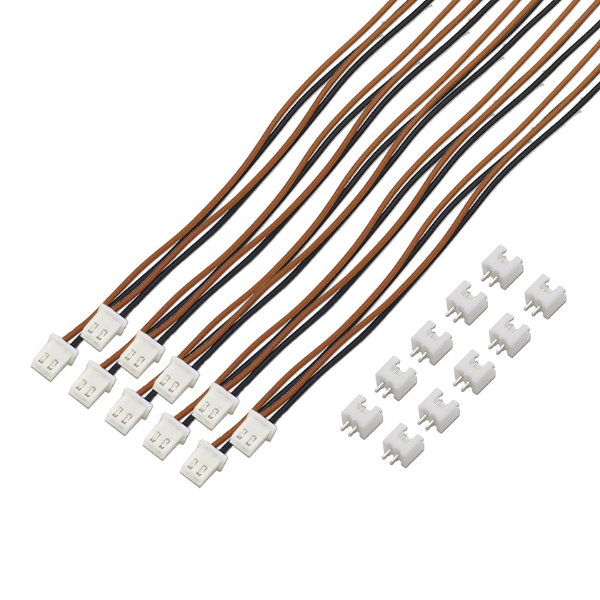

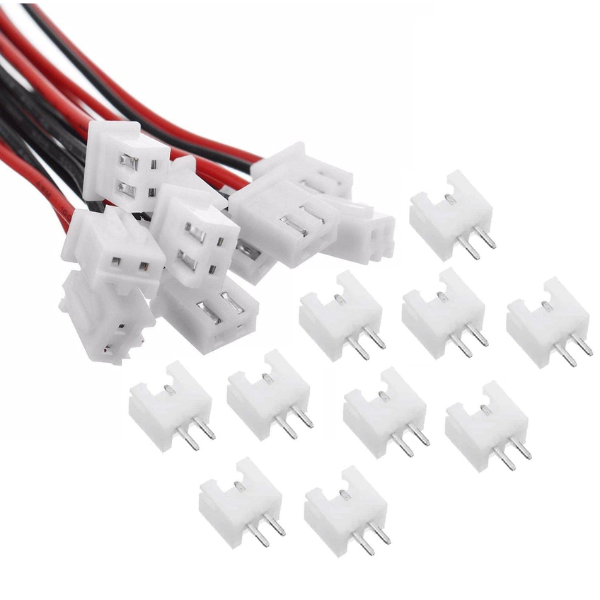

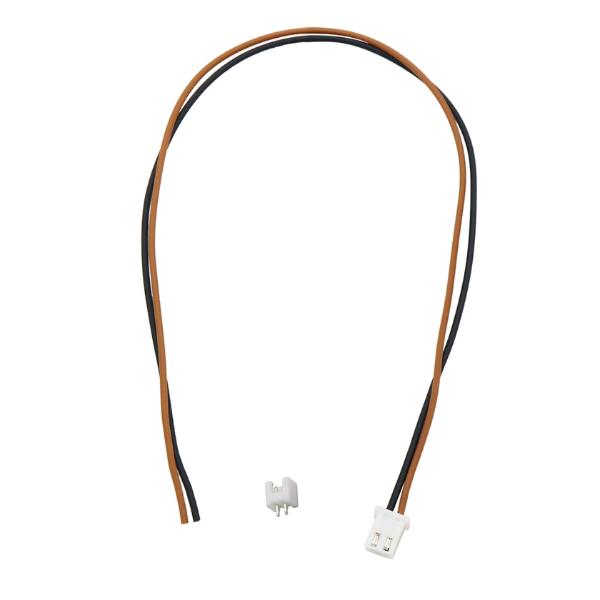

JST-PH Family Connector: Compact and Reliable
The JST-PH family connector is a popular choice for various electronic applications due to its compact size and reliable performance. With a 2mm pin pitch and dimensions of 89mm x 4.5mm, this connector is ideal for space-constrained designs.
Key Features:

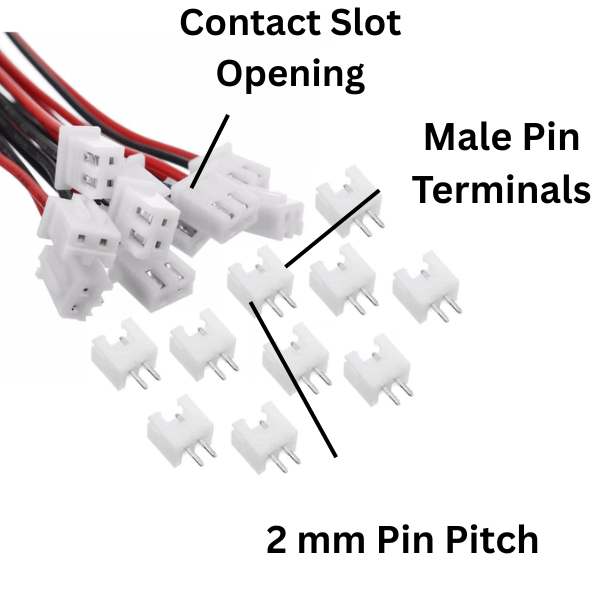

- 2mm Pin Pitch: Provides a compact and efficient connection.
- Dimensions: 89mm x 4.5mm, making it suitable for small-scale projects.
- Reliable Performance: Ensures a secure and stable connection.
- Wide Applications: Commonly used in various electronic devices, including batteries, power supplies, and sensors.
Specifications:
- Type: JST-PH
- Pin Pitch: 2mm
- Dimensions: 89mm x 4.5mm
- Rated Current: 2A
- Rated Voltage: 100V
- Wire Gauge: AWG #32 to #24
Applications:
- Batteries: Li-Po, Ni-MH, and other battery types
- Power Supplies: Low-voltage power sources
- Sensors: Various types of sensors, including temperature, pressure, and humidity sensors
- Electronic Devices: Small-scale electronic projects and devices
Order your JST-PH family connector today and experience the benefits of its compact size and reliable performance.
DATA SHEET AND USECASE
Key Specifications:
- Connector Type: JST-PH series
- Number of Pins: 2
- Pitch (Pin Spacing): 2.0 mm
- Current Rating: Up to 2A AC/DC (using AWG #24 wire)
- Voltage Rating: Up to 100V AC/DC
- Contact Resistance: Maximum 10 mΩ
- Insulation Resistance: Minimum 1000 MΩ
- Withstanding Voltage: 800V AC/minute
- Applicable Wire Gauge: AWG #32 to #24
- Applicable PCB Thickness: 0.8 to 1.6 mm
