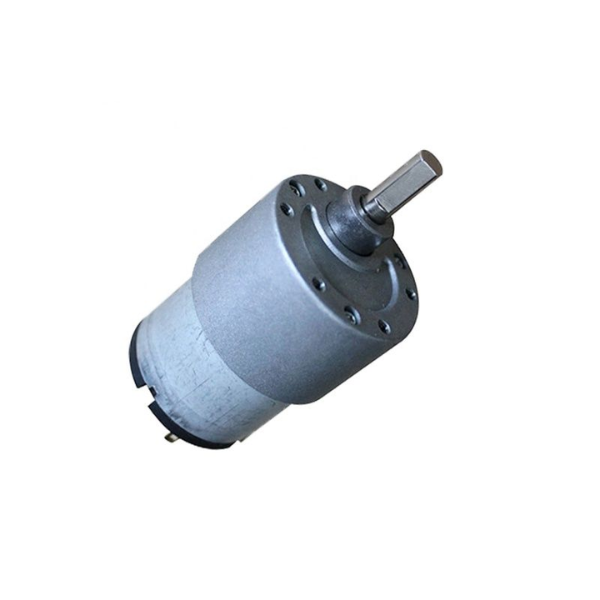

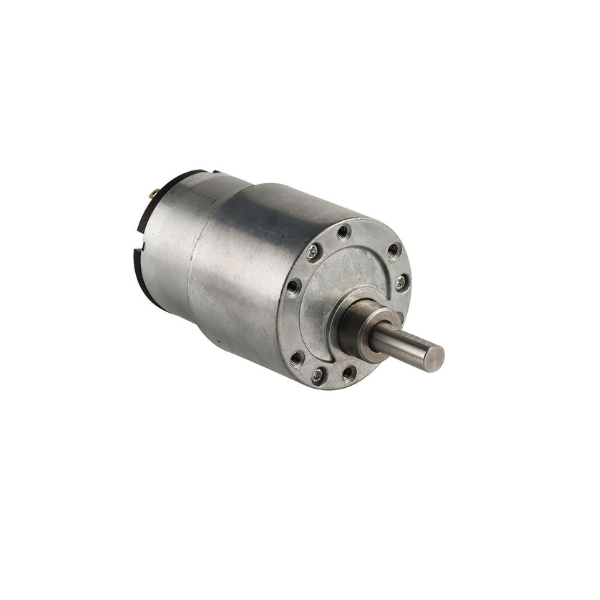

200 RPM High Torque DC Geared Motor Side Shaft for Robotics

Sold By

DSMElectro Solutions Private Limited

(1249 customer reviews)

Top Selling Products

Resistor SMD 1206 10K Pack 10

74% OFF

~~₹39~~ ₹11
Digital LED Temperature Controller XH-W3001 12V 120W

41% OFF

~~₹399~~ ₹236
LCD 16x2 Blue Display

40% OFF

~~₹199~~ ₹120
IR tracker sensor

54% OFF

~~₹99~~ ₹46
LiPo Rechargeable Battery High-Quality 3.7V 500mAh

57% OFF

~~₹599~~ ₹258
Relay Module 12V Single Channel

64% OFF

~~₹99~~ ₹37
NEMA17 Planetary Geared Hybrid Stepper Motor 25KGCM Reduction Ratio 1:5

25% OFF

~~₹4,999~~ ₹3,775
LiPo Rechargeable Battery High-Quality 3.7V 380 mAh

25% OFF

~~₹399~~ ₹300

Description Reviews

Description:

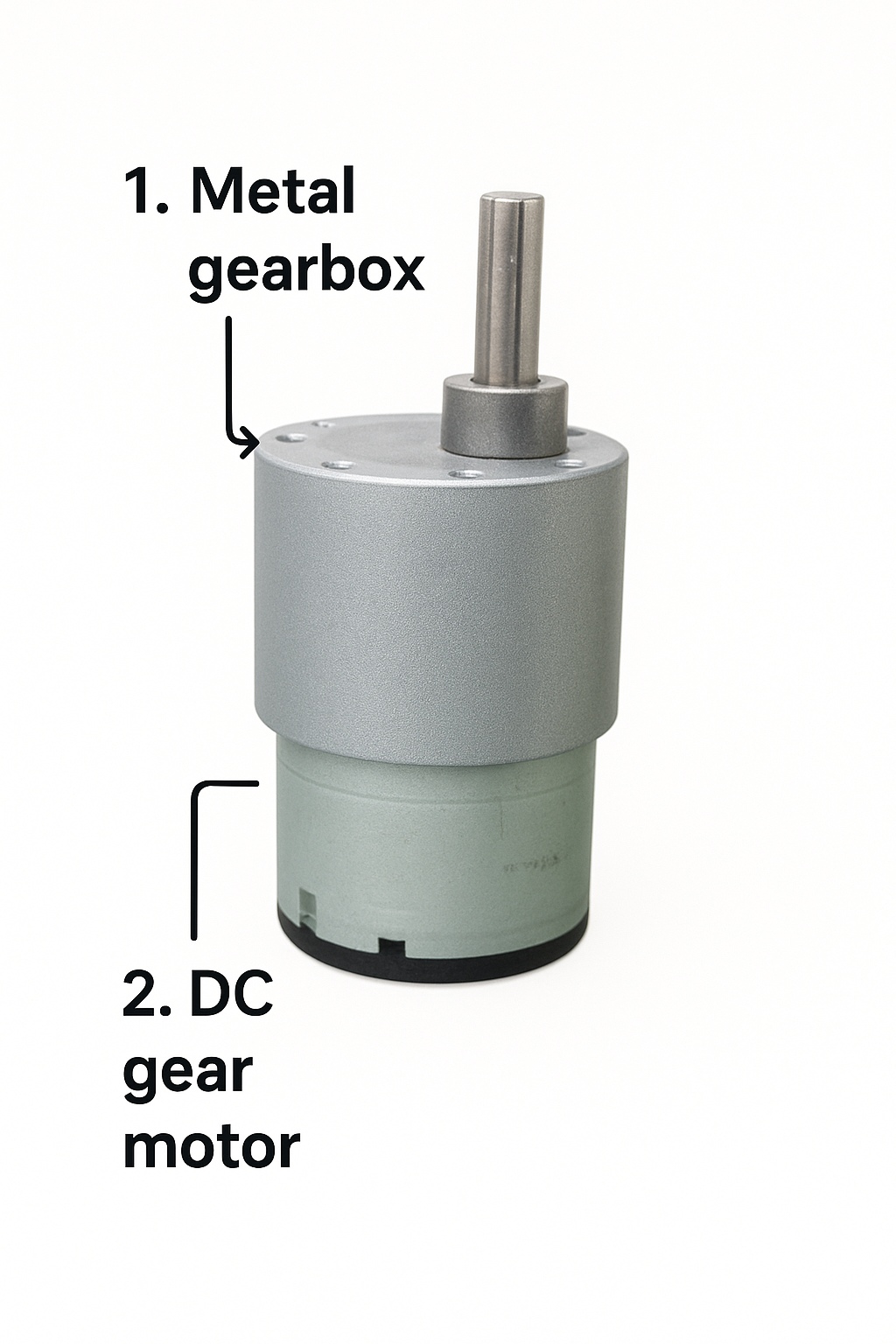

A geared DC Motor has a gear assembly attached to the motor. The speed of the motor is counted in terms of rotations of the shaft per minute and is termed as RPM. The gear assembly helps in increasing the torque and reducing the speed. Using the correct combination of gears in a gear motor, its speed can be reduced to any desirable figure. This concept where gears reduce the speed of the vehicle but increase its torque is known as gear reduction.

Applications:

The main application of this motor is Pan/ Tilt cameras, auto shutter, welding machines, water meter, grill oven, Floor cleaning machine, garbage disposers, household appliances, Slot machines, Money detector, automatic actuator, coffee machine, Towel dispenser, lighting, Coin refund devices, Peristaltic pump and many more.

Specification :

Output RPM: 200 rpm
Stall Torque: 1.5 Kg/cm
Stall Current: 750 - 800 ma
Motor body Length: 75mm
Motor Body Diameter:35mm
Material: Cast Iron

Package Includes:

1 x 200 RPM High Torque DC Geared Motor Side Shaft

DATA SHEET AND USECASE

Key Specifications:

Rated Voltage: 12V DC
No-Load Speed: 200 RPM
Torque: Varies by model; for example, some motors provide up to 32 kg-cm
Shaft Diameter: Commonly 6mm
Shaft Length: Approximately 15mm to 30mm
Gearbox Diameter: Around 37mm
Motor Dimensions: Length without shaft approximately 63mm; motor diameter about 28.5mm
Weight: Approximately 180g to 300g
No-Load Current: Typically around 800 mA
Load Current: Up to 7.5 A under maximum load

Download
