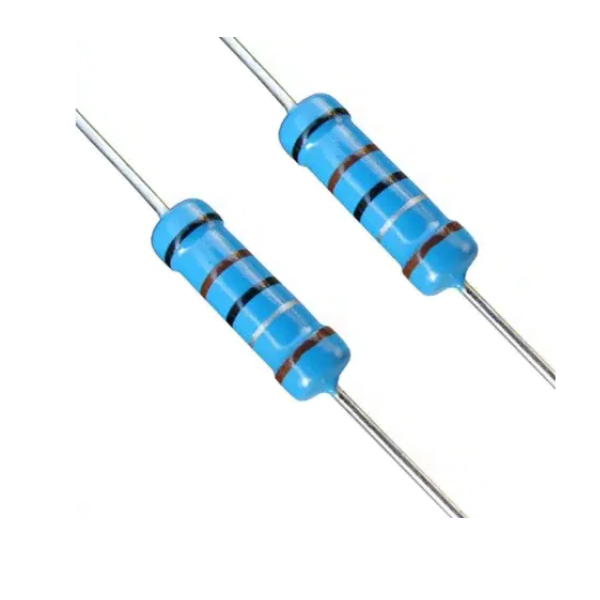

22R - 5% - 0.25W - ELECF (Resistor)) Pack 10

Description:

This product offers a pack of 10 high-quality 22 ohm resistors, each with a 5% tolerance and a power rating of 0.25 watts. These resistors are ideal for various electronic applications where precise resistance and moderate power handling are required.

Key Features:

• Resistance: 22 ohms
• Tolerance: 5%
• Power Rating: 0.25 watts
• Quantity: 10 resistors
• Brand: ELECF
• Type: Carbon film resistor

Applications:

• Voltage Dividers: Creating precise voltage references and signal attenuation.
• Current Limiting: Limiting the flow of current in circuits to protect components.
• Amplifier Feedback: Controlling gain and stability in amplifier circuits.
• Filter Networks: Designing passive filters for frequency-selective applications.
• General Circuit Design: A fundamental component in various electronic circuits.

Specifications:

• Resistance: 22 ohms
• Tolerance: ±5%
• Power Rating: 0.25 watts
• Package: Bulk pack of 10 resistors
• Type: Carbon film resistor
• Brand: ELECF
• Color Code: Refer to the resistor color code for exact resistance value.

DATA SHEET AND USECASE

Datasheet Example:

• Resistance: 22Ω
• Tolerance: ±5%
• Power Rating: 0.25W (1/4W)
• Temperature Coefficient: ±350ppm/°C
• Operating Temperature Range: -55°C to +155°C
• Body Dimensions: 2.3mm (Diameter) x 6.3mm (Length)
• Lead Diameter: 0.6mm
• Lead Length: 28mm
