Description:
Efficiently Connect and Disconnect Components:

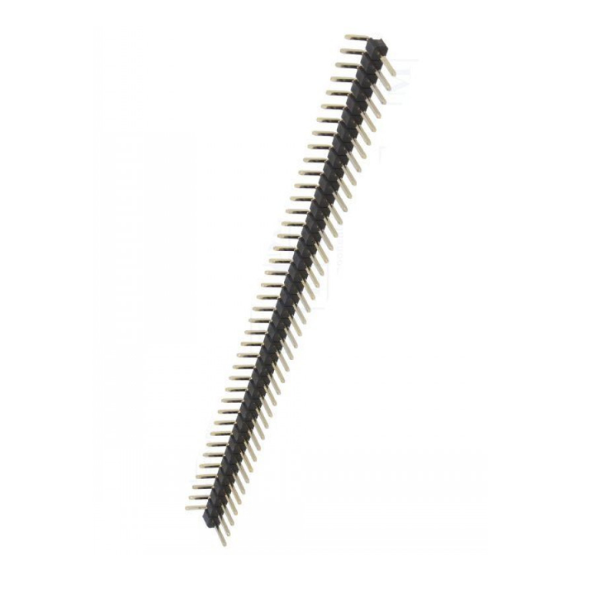

Our high-quality 40-pin male Berg strip header with a right-angle design is the perfect solution for connecting components on printed circuit boards (PCBs) in space-constrained applications. This versatile connector offers a reliable and efficient way to expand the pin count of your microcontrollers, ICs, and other devices.
Key Features:
- 40-Pin Configuration: Provides ample pins for various applications.
- 2.54mm Pitch: Industry-standard spacing for compatibility with a wide range of components.

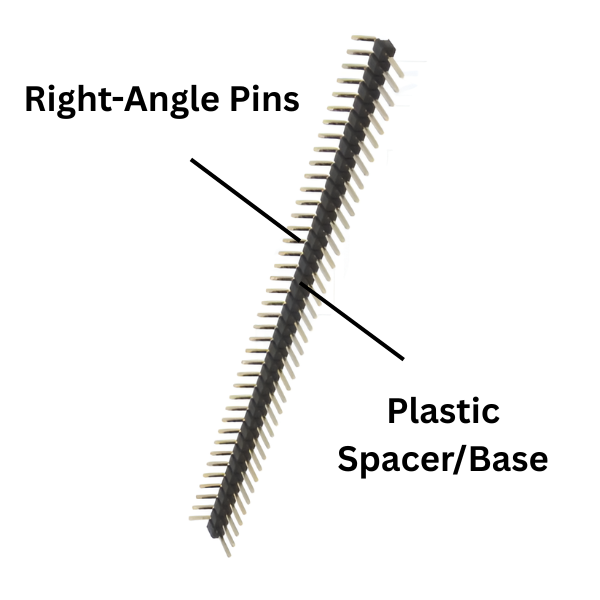

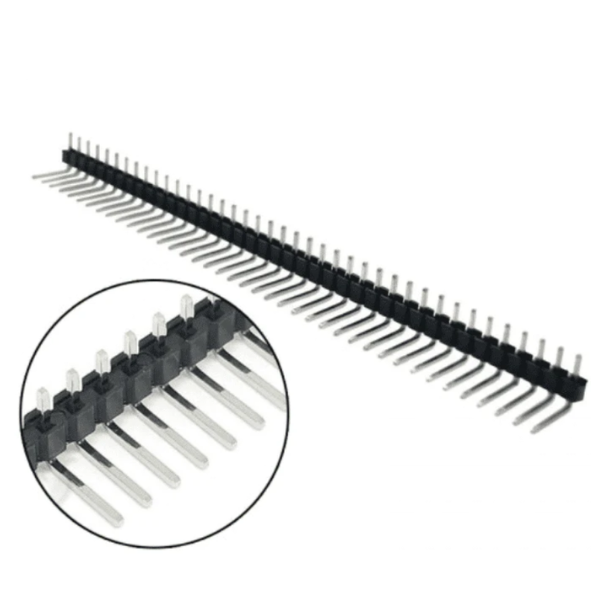

- Right Angle Design: Ideal for applications where space is limited.
- Through-Hole Mounting: Easily solder directly into your PCB.
- Versatile Applications: Ideal for extending pins on microcontrollers, ICs, and PCBs.
- Customizable Length: Break away the header to the desired length.
- Reliable Performance: Built with quality materials for long-lasting durability.
Ideal for:
- Electronic Prototyping: Experiment and iterate on your designs quickly.
- DIY Projects: Build your own electronic creations.
- General Circuitry: Connect components in various electronic setups.
Package Includes:
- 3 x 40-Pin Male Berg Strip Right Angle Header
DATA SHEET AND USECASE
Specifications:
- Number of Pins: 40
- Pin Spacing (Pitch): 2.54mm
- Connector Orientation: Right Angle
- Mounting Type: Through-Hole
- Pin Length: Approximately 9mm
- Strip Length: Approximately 100mm
