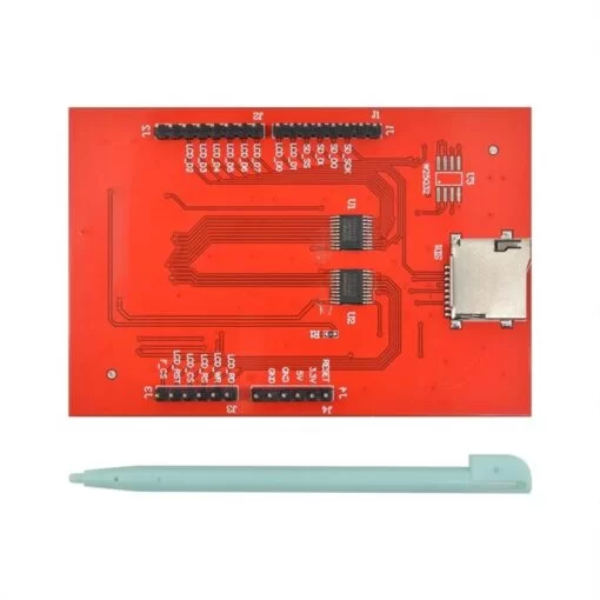

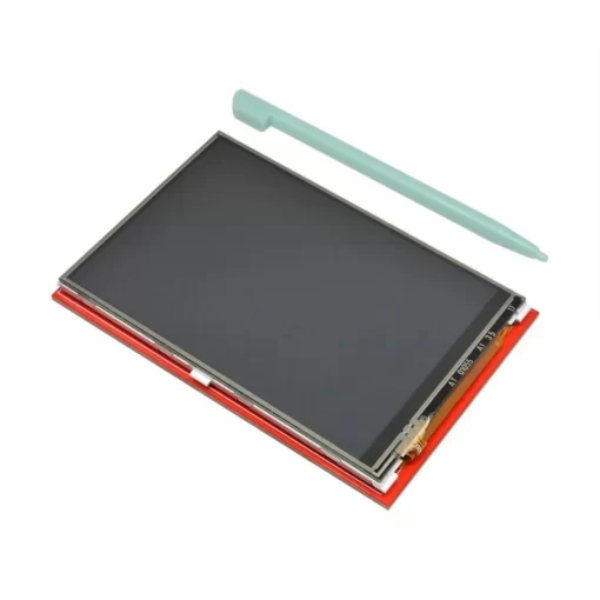

3.5″ inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno

Description:-

This small 3.5 inch ILI9486 TFT Shield LCD Module 480×320 for Arduino Uno with Touch is designed especially for Arduino UNO. This is ideal for DIY anywhere, anytime, and does not require any separate power source or case to hold it. The screen also comes with a stylus to interact with the small screen.

   Features:

Resistive touch screen TFT LCD, 3.5inch, 480×320 resolution

Standard Arduino interface, compatible with development boards like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO

Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control

PWM backlight control allows adjusting the backlight to a comfortable level

Micro SD slot, provides an easy way to store photos for displaying

Controlled via SPI, only a few Arduino pins are used

Comes with STM32 and Arduino examples, convenient for porting

 Specifications:

LCD Type: TFT

LCD Interface: SPI

LCD Controller: ILI9486 / ILI9488

Touch Screen Type: Resistive

Touch Screen Controller: XPT2046

Colors: RGB, 65K colors

Resolution: 480×320 (Pixel)

Aspect Ratio: 8:5

I/O Voltage: 3.3V/5V

Package Includes:

1 x 3.5″ inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno

1 x Stylus
