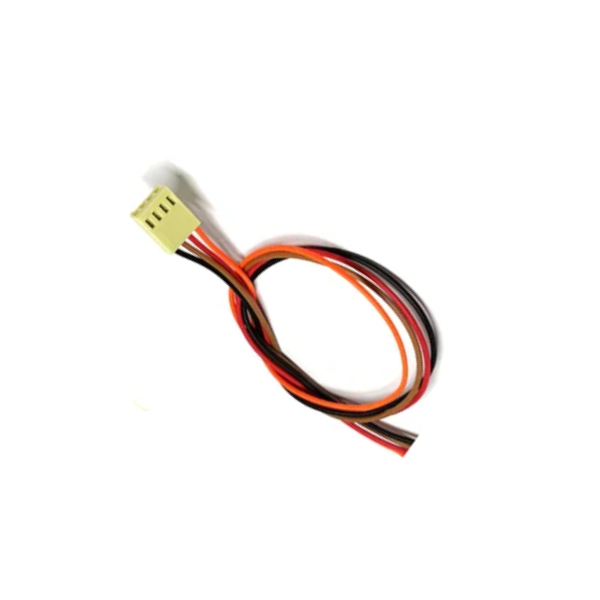

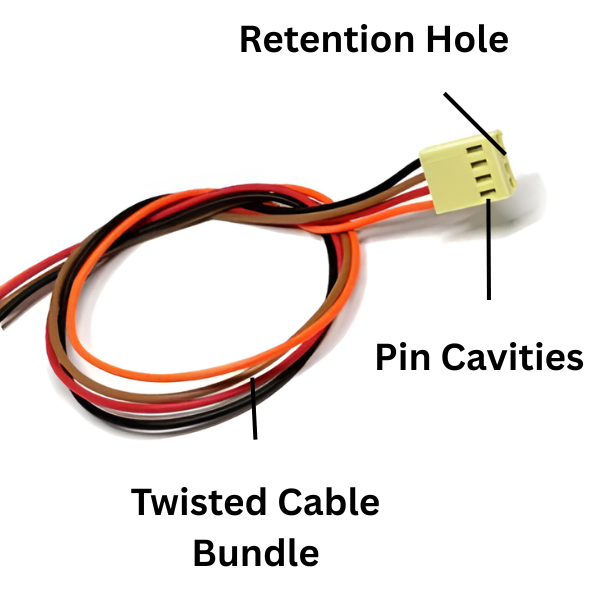

4 Pin Relimate JST Connector 2.54mm Pitch Male and Female pack 5

• 2.54mm Pitch: Ensures compatibility with standard pin headers and breadboards.
• 4 Pins: Provides multiple connections for various signals or power lines.
• Male and Female: Includes both male and female connectors in the pack, allowing for easy mating.
• JST Standard: Compatible with other JST connectors.
• Reliable: Offers a secure and durable connection.

• Type: JST-XH
• Pitch: 2.54mm
• Number of Pins: 4
• Current Rating: 3A
• Voltage Rating: 250V
• Wire Gauge: 22-30 AWG

DATA SHEET AND USECASE

Key Specification:

• Connector Type: JST-XH series, 4-pin
• Pitch (Pin Spacing): 2.54mm (0.1 inch)
• Current Rating: Up to 3A
• Voltage Rating: Up to 250V AC/DC
• Operating Temperature Range: -25°C to 85°C
• Mounting Type: Through-hole
• Materials: Typically made from electrical fire-retardant materials, ensuring durability and safety
