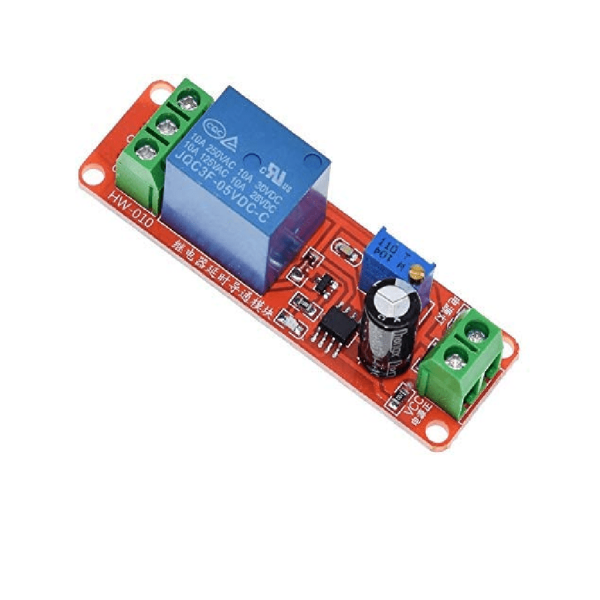

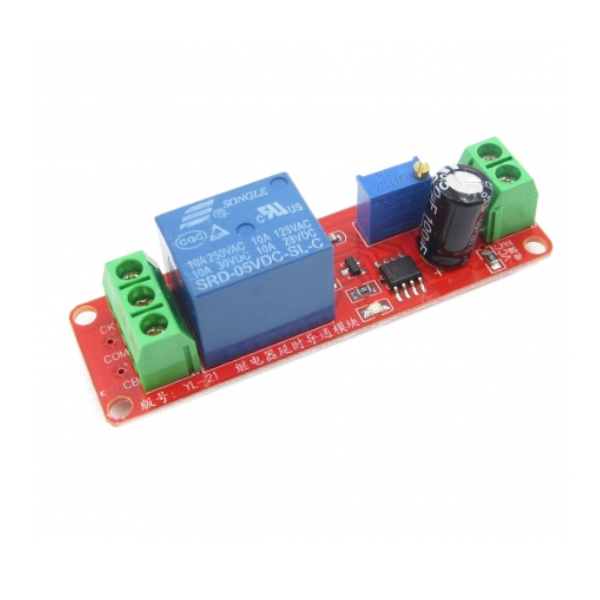

NE555 Delay Timer Switch Adjustable 5V Relay Module

Precise Timing, Versatile Control

Introducing the NE555 Delay Timer Switch Adjustable 5V Relay Module, your go-to solution for precise timing control in various applications. Powered by the reliable NE555 chip, this module offers exceptional performance and versatility.

Key Features:

• NE555 Chip: Ensures accurate and reliable timing.
• Adjustable Delay: Customize delay times from microseconds to hours.
• High-Current Control: Control devices with up to 2200W power.
• Monostable Mode: Generate precise pulses or timings for specific applications.
• Low Power Consumption: Conserves energy in standby mode.
• Temperature Stability: Maintains accuracy across a wide temperature range.

Applications:

• Industrial Automation: Control machinery and processes.
• Automotive Systems: Delay ignition or control components.
• DIY Projects: Add precise timing to your creations.

Specifications:

• Power Supply: DC 5V
• Adjustable Delay: 0 to 10 seconds
• Control Voltage: Up to 250V AC/30V DC
• Maximum Load: 2200W
• Operating Mode: Monostable
• Temperature Stability: 0.005% per degree Celsius

Experience the power of precise timing with the NE555 Delay Timer Switch Adjustable 5V Relay Module. Order yours today and unlock a world of possibilities

DATA SHEET AND USECASE

Specifications:

• Input Voltage: DC 5V

• Adjustable Time Range: 0-10 seconds

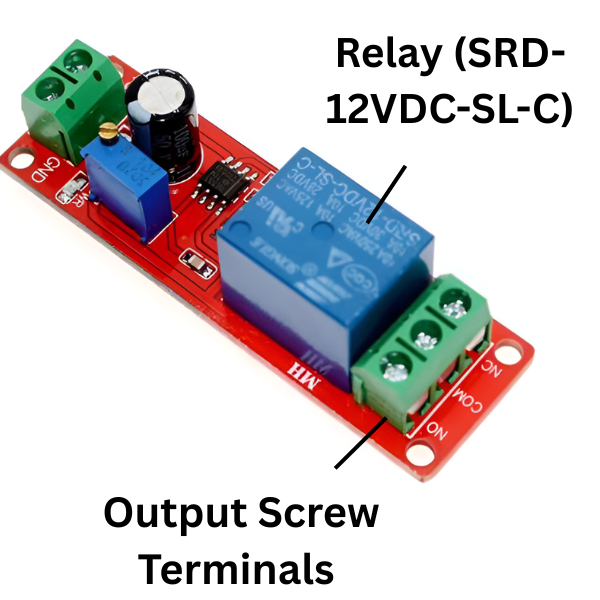

• Relay Capacity:

  • AC Control Voltage: 250V/max. 10A
  • DC Control Voltage: 30V/max. 10A

• Maximum Load: 2200W
