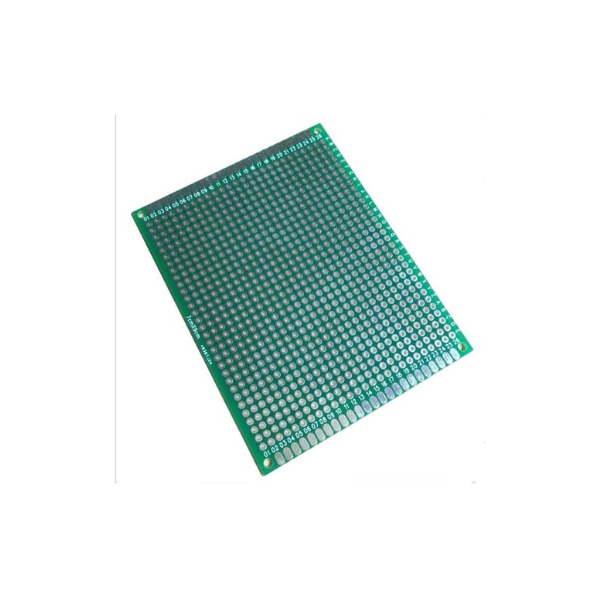

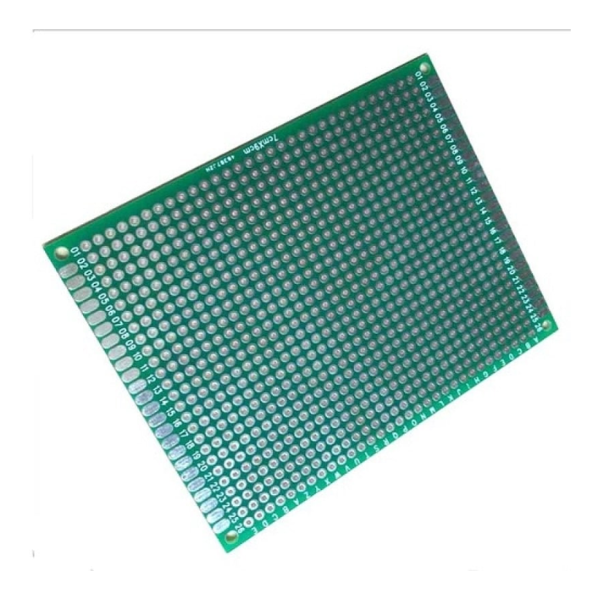

7 X 9 CM Universal PCB Prototype Board Double-sided

7x9cm Double-Sided Universal PCB: Your Versatile Prototyping Canvas

Need a flexible and affordable platform for your electronic projects? Look no further than our 7x9cm double-sided PCB board. This versatile board is perfect for prototyping, testing, and creating custom circuits.

Key Features:

• Spacious Design: Ample space for intricate layouts and components.
• Double-Sided Functionality: Design on both sides for maximum flexibility.
• High-Quality Materials: Crafted from durable FR4 material with a copper thickness of 1-4 oz.
• Precise Construction: Features standard 0.1" spacing through holes for easy component soldering.

Technical Specifications:

• Dimensions: 7x9cm
• Base Material: FR4
• Copper Thickness: 1-4 oz
• Board Thickness: 1.6mm
• Minimum Hole Size: 0.3mm
• Minimum Line Width: 6mm

Ideal Applications:

• Hobbyist Projects: Create unique electronic gadgets and devices.
• Educational Purposes: Learn and experiment with circuit design.
• Rapid Prototyping: Quickly test and iterate on your ideas.

Order your 7x9cm double-sided PCB board today and unleash your creativity!

DATA SHEET AND USECASE

Typical Specifications:

• Material: FR4 fiberglass
• Dimensions: 7 cm x 9 cm
• Thickness: Approximately 1.6 mm
• Hole Diameter: Around 1 mm
• Hole Pitch: Standard 2.54 mm (0.1 inch) spacing
• Layers: Double-sided with copper on both sides
• Surface Finish: Typically HASL (Hot Air Solder Leveling)
