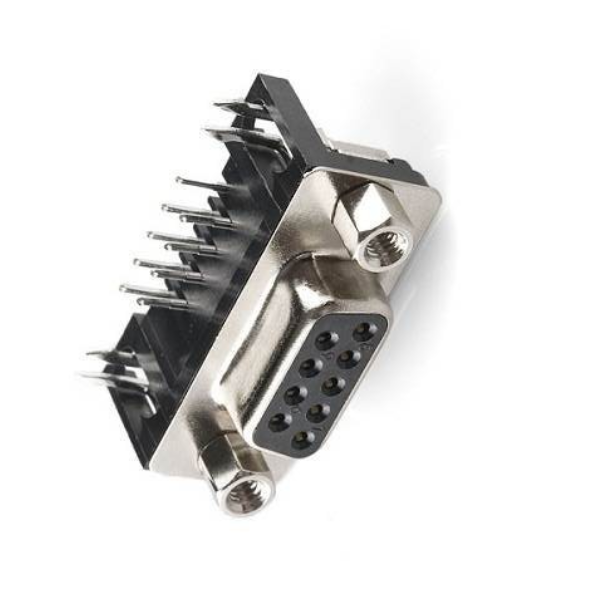

DB9 9-pin Serial Female connector Right Angle pack 3

DB9 Female Right Angle Connector: Reliable and Versatile

Upgrade your electronics projects with this high-quality DB9 female right angle connector. Designed for a variety of applications, it offers a secure and efficient connection for your devices.

Key Features:

• Nickel-Plated Terminals: Ensure corrosion resistance and durability.
• Gold-Plated Pins: Provide optimal conductivity and signal integrity.
• Right Angle Design: Allows for space-saving and efficient PCB mounting.
• Versatile Applications: Suitable for various electronic devices and systems.

Applications:

• Network Ports: Connect to network devices and peripherals.
• Computer Video Output: Connect to monitors and projectors.
• Game Controller Ports: Interface with gaming consoles and peripherals.
• Industrial Automation: Use in various industrial applications.

Specifications:

• Connector Type: DB9 Female Right Angle
• Number of Pins: 9
• Pin Arrangement: 2 rows (5 pins, 4 pins)
• Mounting Type: PCB Mount
• Plating: Nickel-plated terminals, gold-plated pins

Choose the DB9 female right angle connector for a reliable and efficient connection in your projects.

DATA SHEET AND USECASE

Key Feature:

• L-com's SD-9 Series DB9 D-Sub Connectors: This series includes female right-angle connectors suitable for PCB mounting. Features include gold-plated contacts for durability and flame-resistant insulators.

• Winford Engineering's DB9 PCB Mount Right Angle Connectors: These connectors are designed for through-hole PCB mounting, providing a sturdy connection with all 9 pins and two mounting tabs extending through the circuit board.
