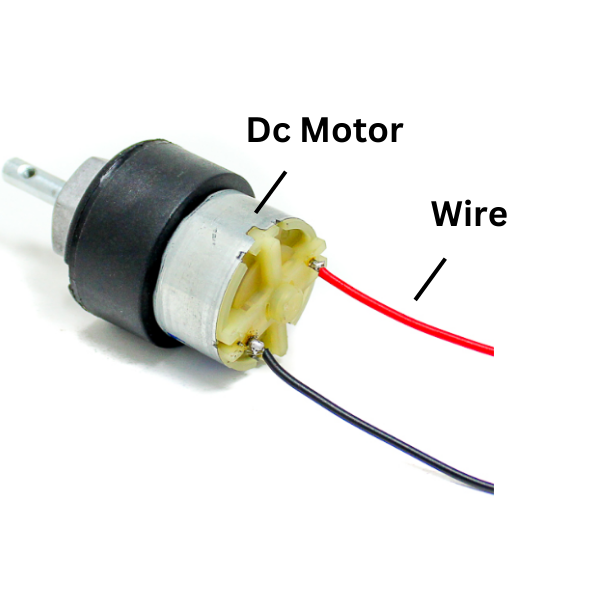

DC Gear Motor 12V, 60 RPM

Description:

A DC Gear Motor 12V, 60 RPM is an electric motor that operates on 12 volts DC power and outputs a rotational speed of 60 revolutions per minute. It incorporates a gear reduction system to increase torque while reducing speed, making it suitable for various applications that require high torque and low speed.

Key Features:

• DC Power: Operates on 12 volts DC power, making it versatile for various power supply options.
• Low Speed, High Torque: The gear reduction system delivers significant torque at a low output speed of 60 RPM.
• Compact Size: Often comes in a compact design, making it suitable for space-constrained applications.
• Durable Construction: Built with robust materials to withstand demanding operating conditions.
• Smooth Operation: Provides smooth and consistent rotational motion.
• Adjustable Speed: Some models may offer adjustable speed control to fine-tune performance.

Applications:

• Robotics: Used in various robotic applications, including robotic arms, manipulators, and autonomous vehicles.
• Automation: Employed in automated systems for tasks like conveyor belts, assembly lines, and material handling.
• Home Automation: Utilized in smart home devices, such as motorized curtains, blinds, and security systems.
• Model Making: Popular in model building and hobbyist projects for powering various mechanisms.
• Medical Devices: Found in medical equipment like motorized beds, wheelchairs, and laboratory instruments.
• Industrial Machinery: Used in industrial machinery for tasks like mixing, stirring, and pumping.

DATA SHEET AND USECASE

General Specifications:

• Voltage: 12V DC
• Speed: 60 RPM (rotations per minute)
• Torque: Varies by model; for example, some motors offer a stall torque of 6.46 kg.cm , while others provide up to 15 kg.cm

• Current:
  • No-load Current: Approximately 60 mA
  • Load Current: Up to 300 mA
  • Stall Current: Can reach up to 20A

• Shaft Dimensions:
  • Diameter: Typically 4mm to 6mm
  • Length: Ranges from 15mm to 25mm
• Motor Dimensions: Commonly around 50mm in length and 24mm in diameter, excluding the output shaft
