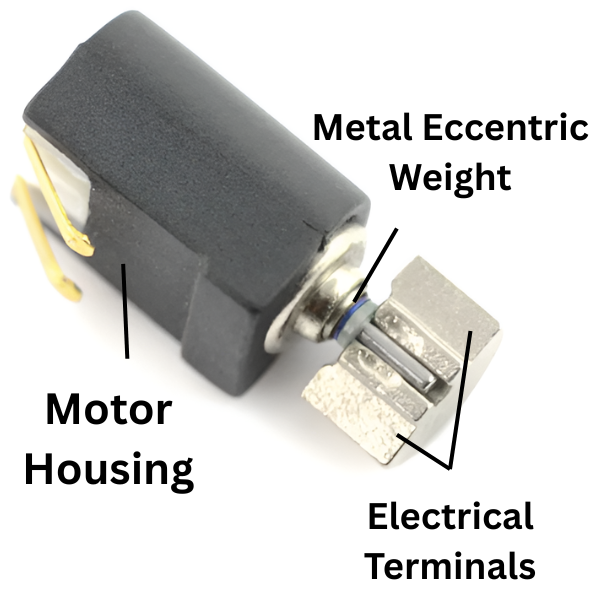

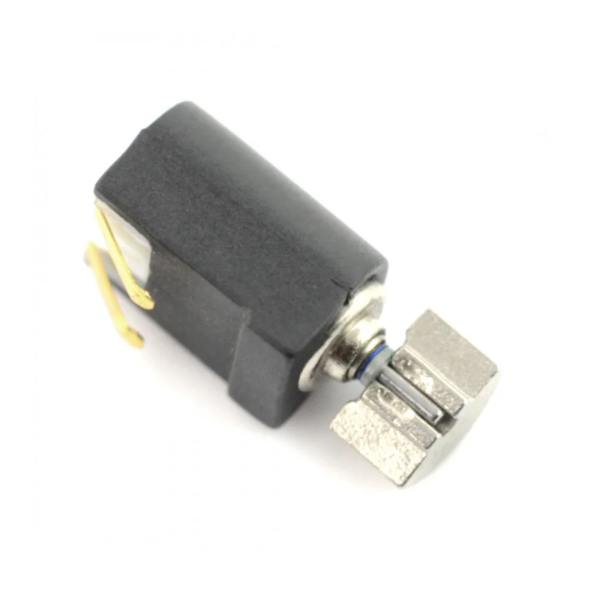

DC Vibration Motor Pack 6

Add Vibration to Your Projects with the Powerful DC Vibration Motor

Experience strong vibrations and versatile applications with this reliable DC motor.

Key Features:

• Versatile Power: Operates on 1.5-3.5V DC, compatible with various battery types.
• Compact Design: Small and lightweight for easy integration into your projects.
• Powerful Vibrations: Delivers strong vibrations despite its compact size.
• Low Power Consumption: Efficient operation for extended battery life.
• Wide Applications: Suitable for pagers, GPS devices, mobile phones, and toys.

Specifications:

• Nominal Voltage: 3V
• Operating Voltage: 1.5-3.5V
• Rated Current: 0.04-0.09A
• Nominal Speed: ~1500 RPM
• Coil Resistance: 30 ohms

Package Includes:

• 1 x DC Vibration Motor

Elevate your projects with the powerful and versatile DC Vibration Motor.

DATA SHEET AND USECASE

Typical Specifications:

• Rated Voltage: 3V DC
• Rated Speed: Approximately 8,200 RPM
• Rated Current: Around 58mA
• Starting Voltage: Approximately 0.8V DC
• Dimensions: 6mm diameter x 15mm length
