Description:

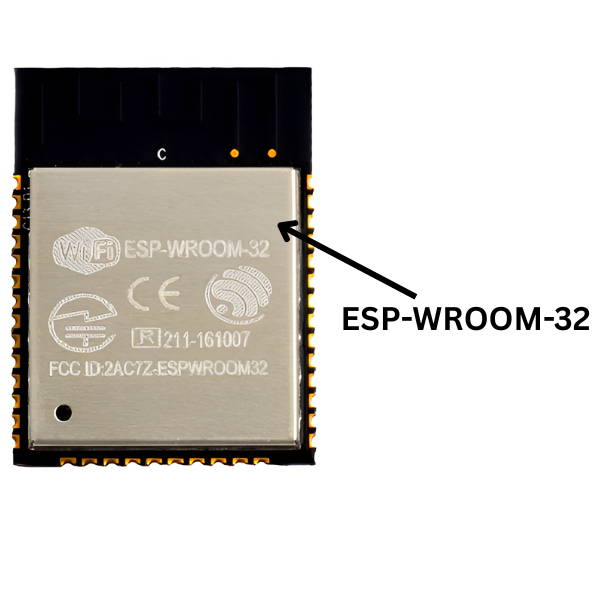

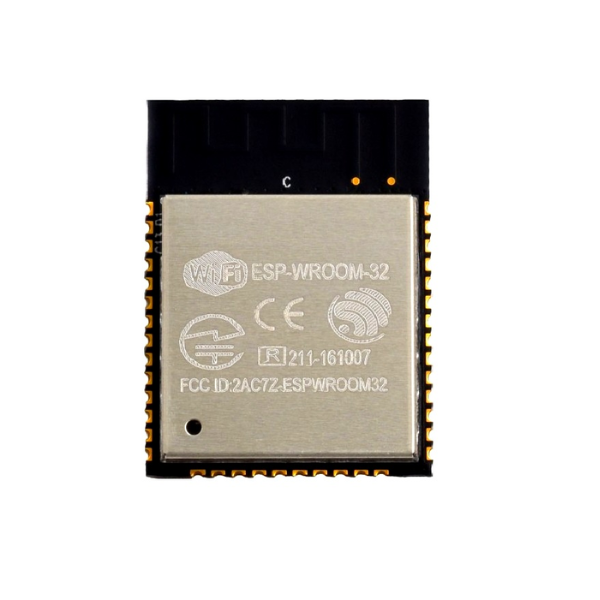

ESP-32S Wifi Bluetooth combo module is ultra-high performance and ultra-low-power consumption Wi-Fi and Bluetooth combo wireless platform based on ESPRESSIF ESP32 chipset. ESP-32S integrates the dual-core processor, 448 KByte ROM,520 KByte SRAM,16 KByte SRAM in RTC, 802.11 b/g/n/e/I Wi-Fi, Bluetooth v4.2 BR/EDR & BLE, clocks & Times, abundant peripheral Interfaces and security mechanism.
Package Includes:
1 x ESP-32S Wifi Bluetooth Combo Module.
DATA SHEET AND USECASE
Key Specification
- Processor: Dual-core 32-bit LX6 microprocessor, adjustable clock frequency from 80 MHz to 240 MHz.
- Memory: Up to 520 KB SRAM; external 4 MB flash memory.
- Wireless Connectivity:
- Wi-Fi: 802.11 b/g/n.
- Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards.
- Interfaces: Multiple peripherals including UART, SPI, I2C, PWM, ADC, DAC, and capacitive touch sensors.
- Operating Voltage: 3.0V to 3.6V.

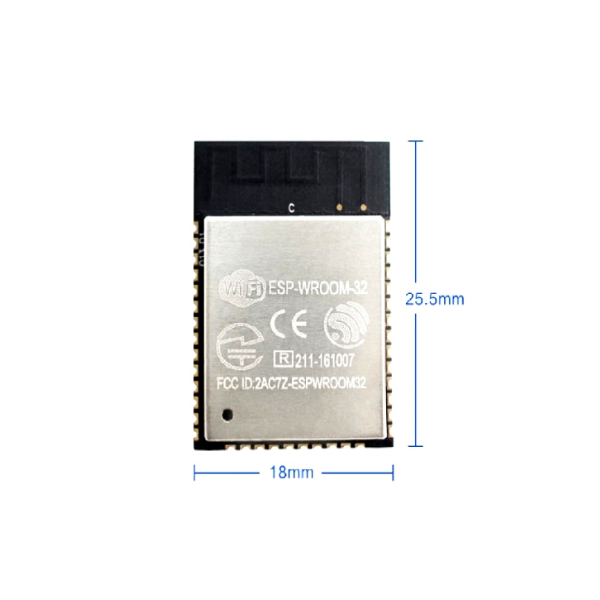

- Package: SMD38 with dimensions 18.0 mm x 25.8 mm x 2.8 mm
