1) Xtensa 32-bit LX6 microprocessors
2) 1 Kbit of EFUSE, 256 bits MAC
3) WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
4) Bluetooth v4.2 BR/EDR and BLE specification
5) Wi-Fi mode Station/softAP/SoftAP+station/P2P
6) Operating voltate: 2.2-3.6V
Description:

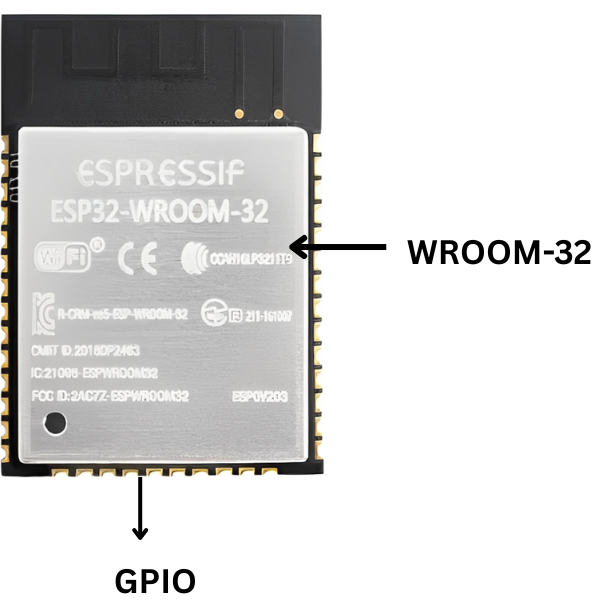

ESP32-WROOM-32D and ESP32-WROOM-32U are powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. ESP32-WROOM-32U is different from ESP32-WROOM-32D in that ESP32-WROOM-32U integrates a U.FL connector. For detailed information on the UFL connector please see Chapter 10 in the datasheet attached.
Features:
ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
448 KBytes ROM for booting and core functions
520 KBytes on-chip SRAM
8 KBytes SRAM in RTC SLOW
8 KBytes SRAM in RTC FAST
1 Kbit of EFUSE, 256 bits MAC
IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
Interfaces: SD-card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor.
Package Includes:
1 x Espressif ESP32-WROOM-32D 4M 32Mbit Flash WiFi Bluetooth Module
