High Torque Side Shaft DC Geared Motor -600RPM

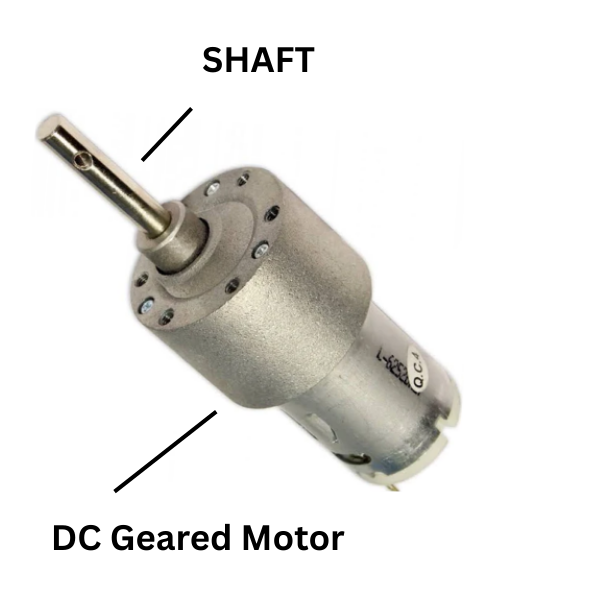

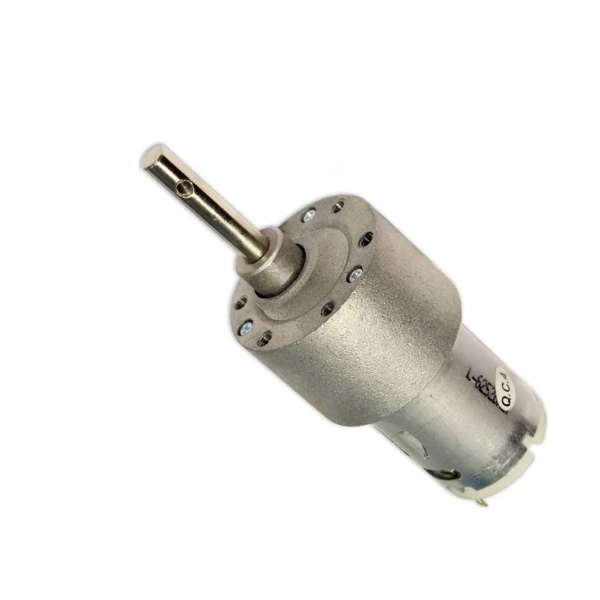

High Torque Side Shaft DC Geared Motor - 600 RPM

Description:

A high-torque side shaft DC geared motor is a specialized electric motor designed to deliver a significant amount of rotational force (torque) at a relatively low speed of 600 RPM. The side shaft configuration allows for flexible mounting and output power transmission.

Applications:

These motors are widely used in various industries and applications, including:

• Robotics: For powering robotic arms, grippers, and other mechanical components.
• Automation: In automated systems for tasks like material handling, assembly, and packaging.
• Industrial machinery: Driving conveyor belts, mixers, pumps, and other equipment.
• Medical devices: Operating prosthetic limbs, surgical tools, and diagnostic equipment.
• Consumer products: Powering appliances like electric shavers, food processors, and power tools.

Key Features:

• High torque: Provides strong rotational force for demanding applications.
• Side shaft design: Offers flexibility in mounting and output transmission.
• DC power: Operates on direct current, making it versatile and compatible with various power sources.
• Geared reduction: Reduces motor speed while increasing torque, providing a suitable output for many applications.
• Compact size: Often available in small and lightweight designs for space-constrained applications.
• Adjustable speed: Some models may offer adjustable speed control for customization.

DATA SHEET AND USECASE

Key Specifications:

• Operating Voltage: Typically 12V DC.
• No-Load Speed: 600 RPM at 12V.
• No-Load Current: Approximately 50 mA.
• Stall Torque: Varies by model; for example, some models offer up to 4.5 kg-cm.
• Shaft Diameter: Commonly 6mm with a D-shape profile.
• Motor Dimensions: Motor diameter around 28.5 mm; length approximately 63 mm (excluding shaft).
