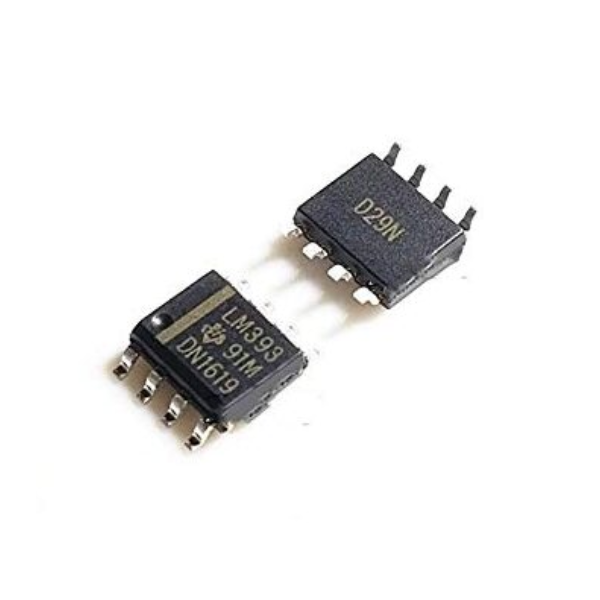

LM393 – Low Power Low Offset Voltage Dual Comparator IC SMD-8 Package Pack 10

Elevate Your Projects with the LM393 Dual Comparator IC

Need a versatile and high-performance voltage comparator? The LM393 is your solution. This dual comparator IC offers exceptional accuracy and flexibility, making it ideal for various applications.

Key Features:

• Dual Independent Comparators: Two separate comparators in one package for added versatility.
• Low Offset Voltage: Ensures precise comparisons with a minimal offset of 2mV.
• Wide Supply Voltage Range: Operates from a single power supply, accommodating different voltage levels.
• TTL and CMOS Compatibility: Seamlessly integrates with popular digital logic families.
• Versatile Applications: Ideal for limit comparators, analog-to-digital converters, pulse generators, and more.

DATA SHEET AND USECASE

Key Features:

• Wide Supply Voltage Range: Operates from 2 V to 36 V (single supply) or ±1 V to ±18 V (dual supplies).
• Low Supply Current: Consumes approximately 0.4 mA, independent of supply voltage.
• Low Input Bias Current: Typically 25 nA.
• Low Input Offset Voltage: Maximum of 5 mV.
• Input Common-Mode Voltage Range: Includes ground, allowing operation with inputs near ground level.
• Output Compatibility: Can interface with TTL, DTL, ECL, MOS, and CMOS logic systems.
