Load Cell weighing sensor table top wide bar 3KG

Description:

Upgrade your weighing equipment with this precision-engineered load cell. Designed for seamless integration into electronic platform scales, digital scales, parcel post scales, and electronic balances, this load cell delivers accurate and reliable weight measurements. Its durable construction and versatile design make it a valuable asset for various applications.

Key Features:

• Accurate Weight Measurement: Precisely measures loads up to 3kg with exceptional accuracy.
• Durable Aluminum Alloy: Built to withstand demanding environments and provide long-lasting performance.
• Versatile Applications: Ideal for a wide range of weighing applications, from industrial to commercial settings.
• Easy Integration: Features a standard Wheatstone bridge configuration for simple integration into electronic systems.
• Protected Design: IP65 rating ensures protection against dust and water, ensuring reliable operation in various conditions.

Specifications:

• Capacity: 3kg
• Material: Aluminum alloy

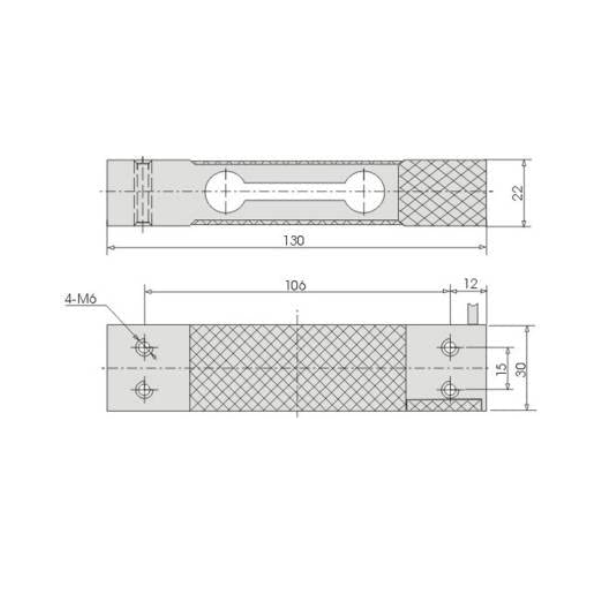

• Dimensions: 130mm x 30mm x 22mm
• Wire Length: 410mm
• Mounting Holes: Four M6 sized thru holes

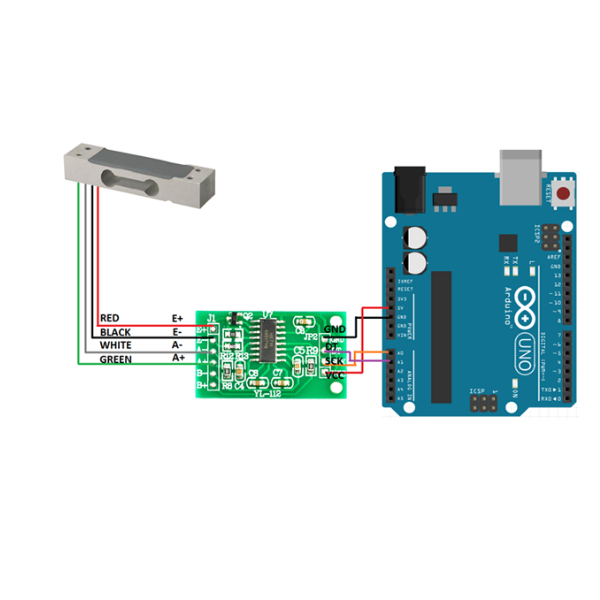

• Color Code: Red (E+), Green (O+), Black (E-), White (O-)
