Description

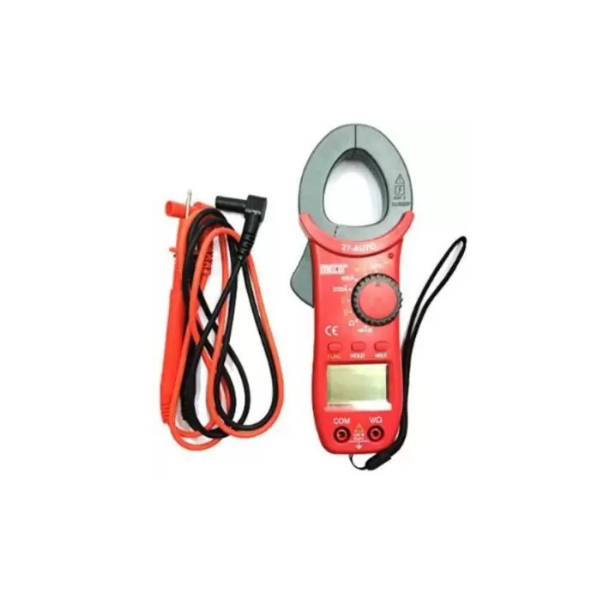

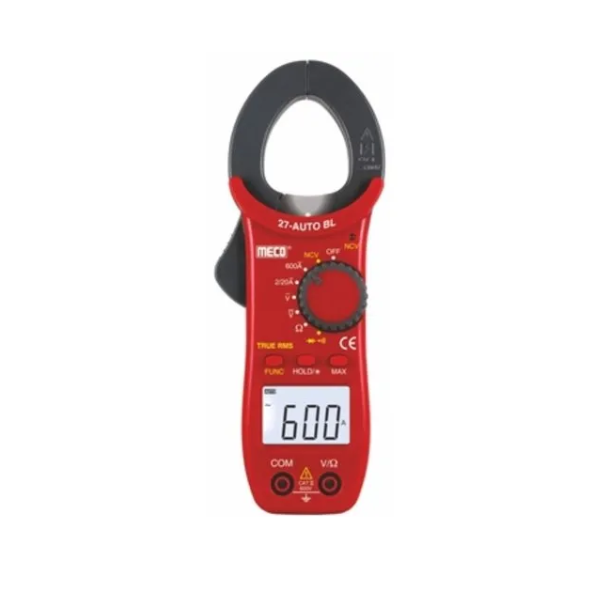

The Meco 27-Auto Digital Clamp Meter is a versatile and reliable tool for measuring electrical parameters. It offers a wide range of functions and features, making it suitable for various applications in electrical engineering, maintenance, and troubleshooting.
Key Features
- 3-1/2 Digit Display: Provides clear and accurate readings with 2000 counts.
- True RMS (Root Mean Square): Accurately measures AC voltages and currents, even in non-sinusoidal waveforms.
- Auto-Ranging: Automatically selects the appropriate measurement range for optimal accuracy.
- Clamp Meter Design: Allows for non-invasive current measurements without breaking the circuit.
- Multiple Measurement Functions: Measures AC/DC voltage, AC current, resistance, continuity, and diode test.
- Data Hold Function: Freezes readings for easy viewing and recording.
- Backlit LCD: Ensures visibility in low-light conditions.
- Low Battery Indicator: Alerts the user when the battery level is low.
Applications
The Meco 27-Auto Digital Clamp Meter is used in a variety of fields, including:
- Electrical Maintenance: Troubleshooting electrical circuits, checking for faults, and verifying equipment performance.
- Industrial Applications: Monitoring electrical systems in factories and manufacturing plants.
- Home Improvement: Testing electrical outlets, appliances, and wiring.
- Electronics Repair: Diagnosing problems with electronic devices.
- Research and Development: Conducting electrical measurements in laboratory settings.
DATA SHEET AND USECASE
Key Features:
- Display: 3½-digit LCD with 2000 counts
- True RMS (TRMS): Provides accurate readings for AC measurements, regardless of waveform distortions
- Auto Ranging: Automatically selects the appropriate measurement range for increased convenience
- AC Current Measurement: Up to 600A
- AC/DC Voltage Measurement: Up to 600V
- Resistance Measurement: Up to 20MΩ
- Additional Functions:
- Audible continuity test
- Diode test
- Data hold function to freeze the displayed measurement
- Maximum value capture
- Backlit display for visibility in low-light conditions
- Built-in torchlight for illuminating the measurement area
- Non-Contact Voltage (NCV) detection with LED and buzzer indicators
- Auto power-off to conserve battery life
- Low battery indication
- Jaw Opening: Accommodates cables with a diameter up to 25mm
