Description:

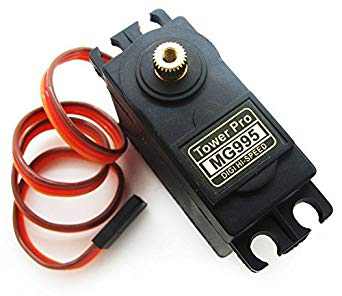

The MG995 is a high-torque, continuous rotation servo motor designed for applications requiring 360-degree uninterrupted movement. It features all-metal gears for enhanced durability and strength, making it suitable for demanding projects.
Key Features:
- 360-Degree Rotation: Enables continuous rotation in both directions without limitations, providing flexibility in various applications.
- Metal Gears: Ensures robust performance and longevity, making it suitable for high-stress environments.
- High Torque: Delivers significant power for driving various mechanisms and loads.
- Compact Size: Ideal for space-constrained applications and integration into compact designs.
- Easy Control: Compatible with standard servo controllers and easily integrated into robotic and automation systems.
Specifications:
- Model: MG995
- Rotation: 360 degrees continuous
- Gear Type: All Metal
- Operating Voltage: 4.8V - 7.2V
Stall Torque:
- 4.8V: 130.5 oz-in (9.40 kg-cm)
- 6.0V: 152.8 oz-in (11.00 kg-cm)
Speed:
- 4.8V: 0.20 sec/60°
- 6.0V: 0.16 sec/60°
Dimensions: (Approximate) 40.5mm x 20mm x 44mm
Weight: 60g
DATA SHEET AND USECASE
Key Specifications:
- Operating Voltage: 4.8V to 7.2V
- Stall Torque: Up to 12 kg·cm at 6.6V
- Operating Speed: Approximately 0.16 seconds per 60° at 6.6V
- Rotation: 360° continuous
- Gear Type: Full metal gears
- Dimensions: 40.7 × 19.7 × 42.9 mm
- Weight: 55-60g
