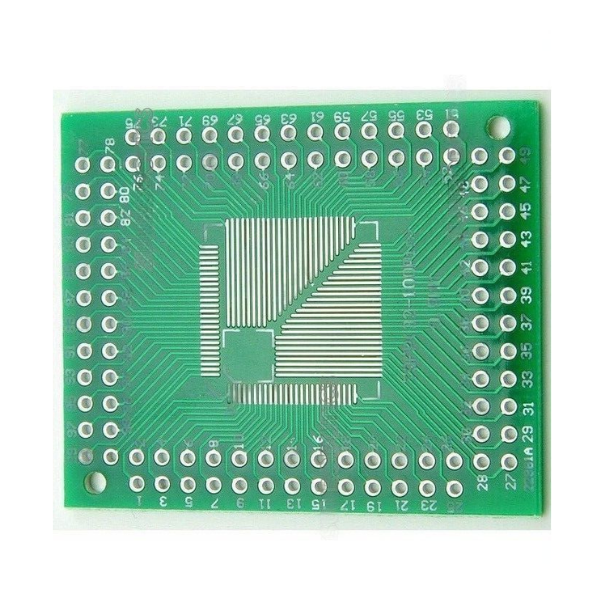

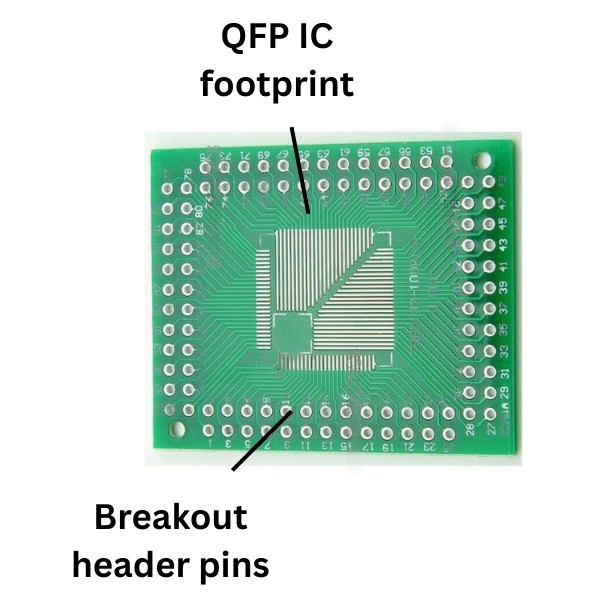

QFP/FQFP/TQFP32/44/64/80/100 LQFP 0.5mm SMD Adapter PCB

Description:

This adapter PCB is designed to facilitate the prototyping and testing of QFP, FQFP, and TQFP surface-mount devices (SMDs) with 32, 44, 64, 80, or 100 pins and a 0.5mm pitch. It allows you to easily convert these SMD packages into a more accessible DIP (Dual In-Line Package) format, making it easier to work with and test these components.

Key Features:

• Compatibility: Supports a wide range of QFP, FQFP, and TQFP packages with 32, 44, 64, 80, or 100 pins.
• 0.5mm Pitch: Specifically designed for SMDs with a 0.5mm pin pitch.
• DIP Conversion: Converts SMD packages into a DIP format for easier handling and testing.
• Double-Sided: Features two sides for different pin configurations.
• High-Quality PCB: Made from durable FR-4 material.
• Easy to Use: Simply solder the SMD to the adapter PCB and then plug it into a breadboard or other DIP-compatible socket.

Specifications:

• Package Types: QFP, FQFP, TQFP
• Pin Counts: 32, 44, 64, 80, 100
• Pin Pitch: 0.5mm
• PCB Material: FR-4
• Dimensions: Vary depending on the specific adapter
• Weight: Varies depending on the specific adapter

DATA SHEET AND USECASE

Key Features:

• Dual-Sided Design: One side of the adapter supports a pin pitch of 0.8mm, accommodating ICs with 32 to 64 pins, while the other side supports a 0.5mm pin pitch, suitable for ICs with 32 to 100 pins.

• Compatibility: Suitable for a wide range of microcontroller units (MCUs) and ICs, including series like STC89C, ATmega, STM32F, and MSP430.

• High-Quality Material: Constructed from FR-4 PCB material, ensuring durability and reliable performance.
