Round Push Button SPST Red 20mm Switch Pack 2

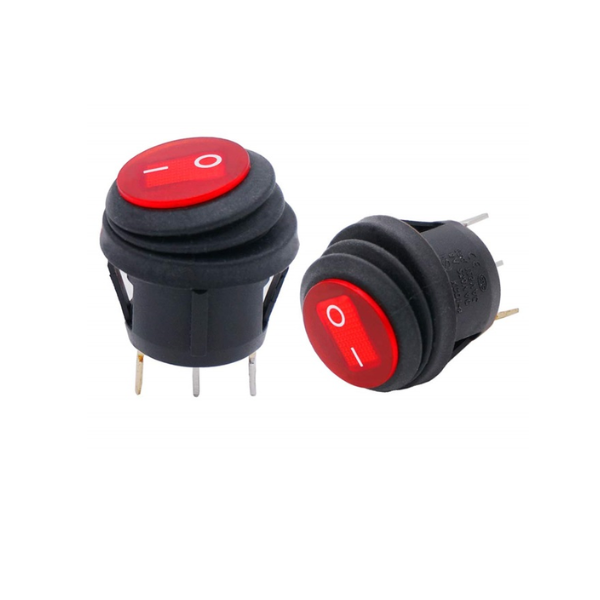

Power Up Your Projects with the KCD1-5-101NW-R SPST ON-OFF Rocker Switch

Need a reliable and durable rocker switch for your electronic projects? The KCD1-5-101NW-R is the perfect choice. This versatile switch offers a clear ON/OFF indication and a high current rating, making it ideal for a wide range of applications.

Key Features:

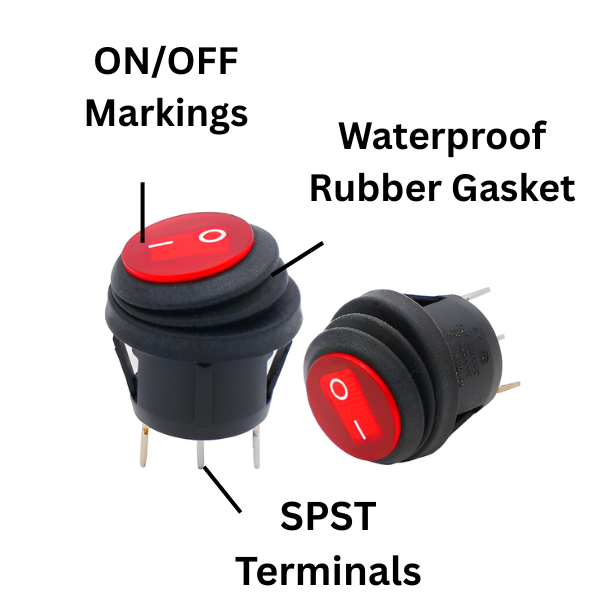

• SPST ON-OFF Configuration: Provides a simple and straightforward switching mechanism.
• High Current Rating: Handles up to 10A at 125VAC or 6A at 250VAC, suitable for powering various devices.
• Clear Indication: Red LED clearly indicates the switch position.
• Waterproof Design: Protects against moisture and other elements.
• Durable Construction: Built to last with a long lifespan.

Applications:

• Home appliances
• Electrical equipment
• Robotics
• Automotive applications
• Industrial machinery
• Water dispensers
• And more!

Technical Specifications:

• Part No: KCD1-5-101NW-R
• Structure: SPST
• Current/Voltage Rating: 10A 125VAC/6A 250VAC
• Operating Temperature: -25°C to +85°C
• Contact Resistance: <= 30mΩ
• Insulation Resistance: >= 100mΩ (500VDC)
• Electrical Life: >= 10,000 Cycles
• Dielectric Strength: 1500VAC for 1 minute
• Mechanical Life: >= 100,000 Cycles
• Number of Pins: 3
• Illumination Type: Illuminated
• Waterproof Grade: IP65
• Actuator Shape: Round
• Indication Color: Red
• Dimensions: Diameter 20 mm, Height 17 mm
• Weight: 7 grams

Order your KCD1-5-101NW-R SPST ON-OFF Rocker Switch today and elevate your electronic projects.
