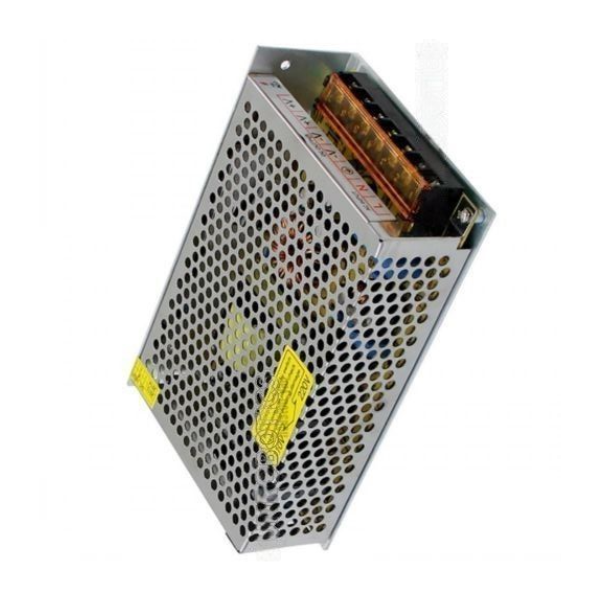

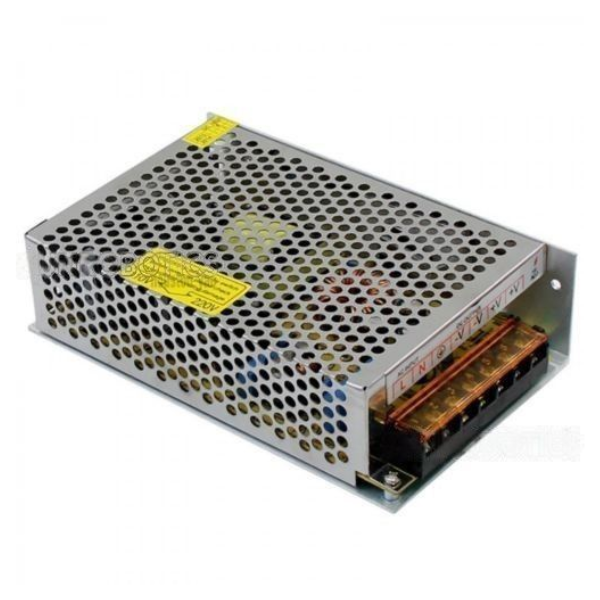

SMPS Industrial Power Supply 48V 10A

• High Efficiency: Provides exceptional energy efficiency, reducing operating costs and minimizing heat generation.
• Robust Performance: Offers a stable output voltage and high current capacity, ensuring reliable power delivery.
• Versatile Applications: Suitable for a wide range of industrial and commercial applications requiring DC power.
• Protection Features: Includes overvoltage, overload, and short circuit protection for added safety and reliability.
• Compact Design: Features a compact and durable construction for easy installation and space-saving placement.

• Input Voltage: AC 85-132V/170-264V (switch replacement)
• Input Current: 6.5A/115V, 4A/230V
• Frequency: 50/60Hz
• Output Voltage: +48VDC
• Output Current: 10A
• Rated Power: 480W
• Efficiency: 87% (typical)
• Ripple/Noise: 150mVp-p
• Dimensions: 200mm x 110mm x 50mm

DATA SHEET AND USECASE

Key Specifications:

• Input Voltage: Typically supports a wide range of AC inputs, such as 85V AC to 270V AC

  or 100V AC to 264V AC.

• Output Voltage: 48V DC, regulated.

• Output Current: Up to 10A.

• Power Output: Up to 480W.

• Efficiency: Typically greater than 80%

• Protections: Common protections include over-voltage, over-current, short-circuit, and over-temperature protections
