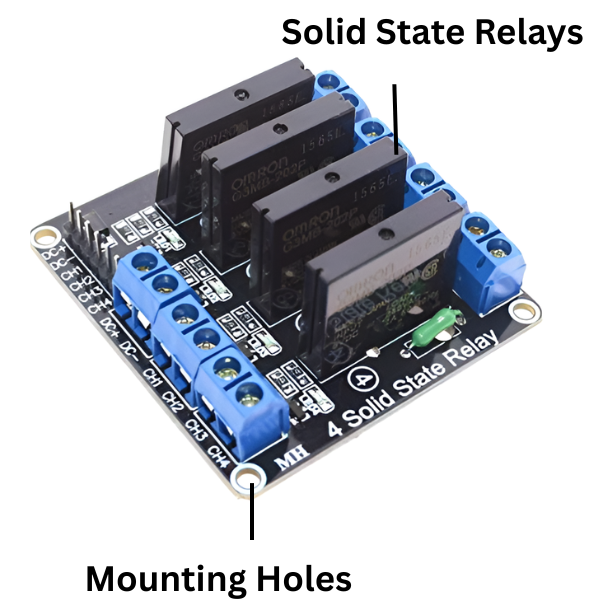

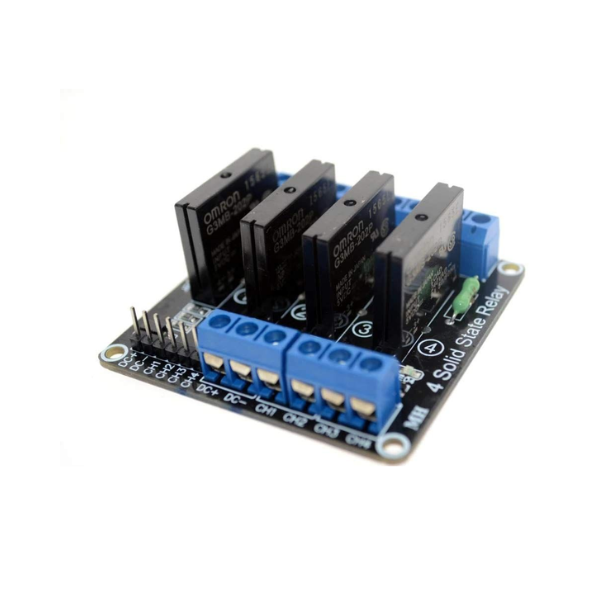

Solid State Relay Module 5V 4 Channel

Description:

Effortless Control, Powerful Performance:

Introducing our 5V 4-channel SSR module, a compact and efficient solution for controlling high-current loads with low-voltage signals. Built around the reliable Omron G3MB SSR, this module offers exceptional performance and durability.

Key Features:

• 4-Channel Flexibility: Control up to four separate loads simultaneously.
• High-Power Output: Handle currents of up to 2A at 240VAC, ideal for controlling appliances and industrial equipment.
• Low-Voltage Control: Operate with a convenient 5V input, making it compatible with a wide range of microcontrollers and other devices.
• Clear Indicators: LED indicators provide real-time status for each relay channel.
• Pre-Tested Quality: Each module undergoes rigorous testing to ensure reliable operation.

How it Works:

• Apply a 0-2.5V input to a channel to turn the relay OFF.
• Apply a 3-5V input to a channel to turn the relay ON.

Applications:

• Home automation
• Industrial control
• Robotics
• Laboratory equipment

Package Includes:

• 1 x 5V 4-Channel SSR Solid State Relay Module

DATA SHEET AND USECASE

Key Specifications:

• Input Voltage: 5V DC
• Control Signal Voltage: 0-2.5V (Low level, relay OFF); 3.3-5V (High level, relay ON)
• Output Load Voltage: 100V to 240V AC (50Hz/60Hz)
• Output Load Current: Up to 2A per channel
• Isolation: Phototriac for galvanic isolation between control and load sides
• Dimensions: Approximately 57 x 55 x 20 mm
