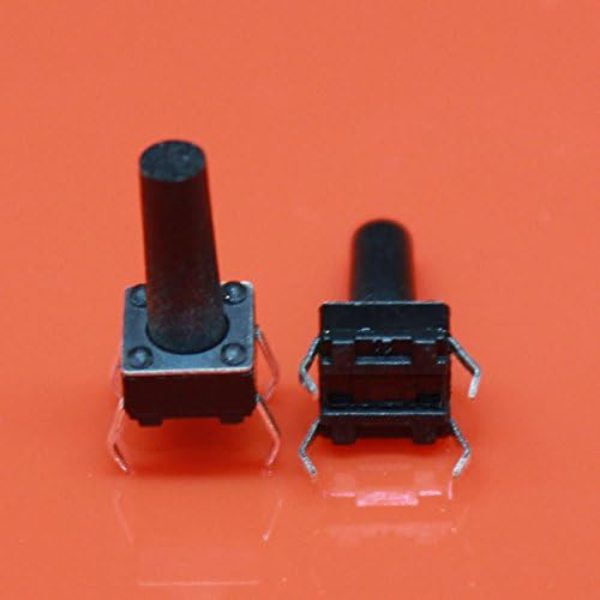

Tactile Push Button Switch 6x6x13 mm Pack 10

Elevate Your Electronic Projects with the 6x6x13mm Tactile Push Button Switch

Need a reliable and durable push button switch for your projects? Our 6x6x13mm tactile push button switch is the perfect choice. This versatile component offers a tactile feel and reliable performance, making it ideal for a wide range of applications.

Key Features:

• Through-Hole Design: Easy to integrate into your PCB or breadboard.
• Compact Design: Small and lightweight for easy integration into your projects.
• Tactile Feedback: Provides a satisfying click when pressed.
• Durable Construction: Built to last with a long lifespan.
• Versatile Applications: Suitable for various electronic projects, from DIY creations to industrial control systems.

Applications:

• Telecommunications
• Consumer electronics
• Audio/visual equipment
• Medical devices
• Testing and instrumentation
• Computer peripherals
• DIY projects

Technical Specifications:

• Dimensions: 6x6x13mm
• Contact Type: Through-hole
• Mechanical and Electrical Lifecycle: 50,000 cycles (estimated)

Order your 6x6x13mm tactile push button switch today and enhance your electronic projects.

DATA SHEET AND USECASE

Key Specifications:

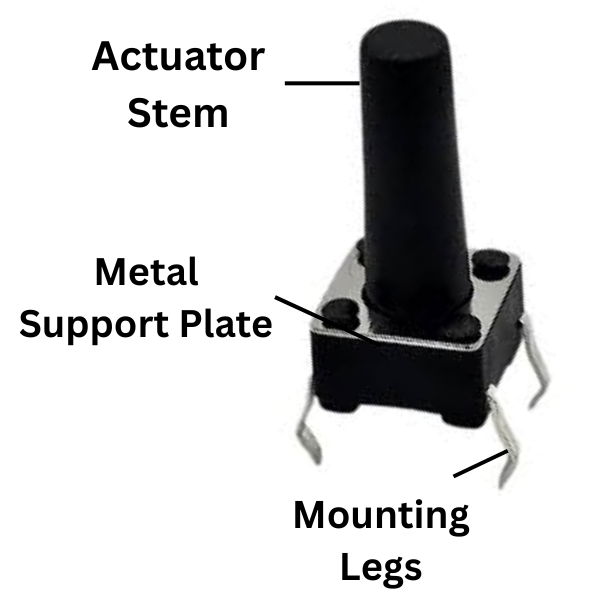

• Dimensions: 6 mm x 6 mm footprint with a height of 13 mm.
• Mounting Type: Typically through-hole, facilitating easy integration into printed circuit boards (PCBs).
• Actuation Force: Commonly around 2.55 N, though variations exist (e.g., 1.6 N or 3.0 N) depending on the specific model.
• Electrical Ratings: Often rated for 50 mA at 12 VDC, suitable for low-power applications.
• Contact Resistance: Generally a maximum of 100 mΩ, ensuring reliable electrical connectivity.
• Mechanical Lifespan: Designed for durability, with lifespans exceeding 100,000 actuations.
