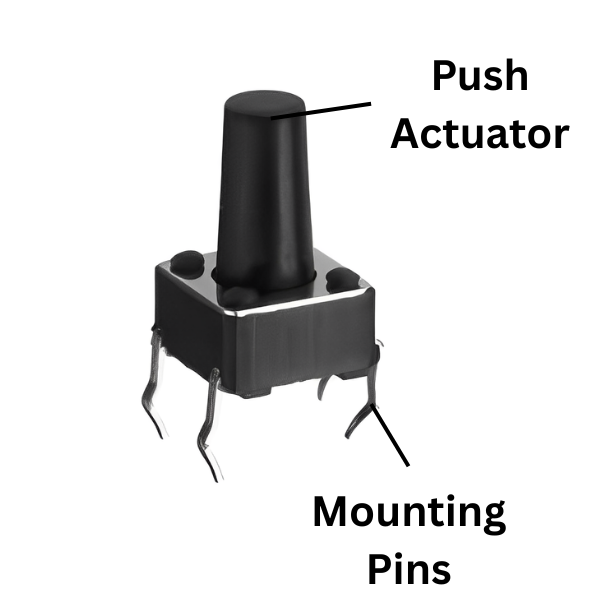

Tactile Push Button Switch 6x6x14 mm Pack 10

Enhance Your Electronic Projects with the 6x6x14mm Tactile Push Button Switch

Need a reliable and durable push button switch for your projects? Our 6x6x14mm tactile push button switch is the perfect choice. This versatile component offers a tactile feel and reliable performance, making it ideal for a wide range of applications.

Key Features:

• Through-Hole Design: Easy to integrate into your PCB or breadboard.
• Compact Design: Small and lightweight for easy integration into your projects.
• Tactile Feedback: Provides a satisfying click when pressed.
• Durable Construction: Built to last with a long lifespan.
• Versatile Applications: Suitable for various electronic projects, from DIY creations to industrial control systems.

Applications:

• Telecommunications
• Consumer electronics
• Audio/visual equipment
• Medical devices
• Testing and instrumentation
• Computer peripherals
• DIY projects

Technical Specifications:

• Dimensions: 6x6x14mm
• Contact Type: Through-hole
• Mechanical and Electrical Lifecycle: 50,000 cycles (estimated)

Order your 6x6x14mm tactile push button switch today and elevate your electronic projects.

DATA SHEET AND USECASE

Key Specifications:

• Dimensions: 6 mm (Length) x 6 mm (Width) x 14 mm (Height)
• Type of Operation: Tactile Feedback
• Circuit Configuration: Push-On Momentary, Single Pole Single Throw (SPST)
• Power Rating: Maximum 50 mA at 24 VDC
• Contact Resistance: Maximum 100 mΩ
• Insulation Resistance: Minimum 100 MΩ at 100 VDC
• Dielectric Withstanding Voltage: 250 VAC for 1 minute
• Contact Bounce: Maximum 5 ms
• Operating Force: Typically 1.6 N
• Return Force: Minimum 0.49 N
• Travel Distance: 0.25 mm (with tolerances)
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
