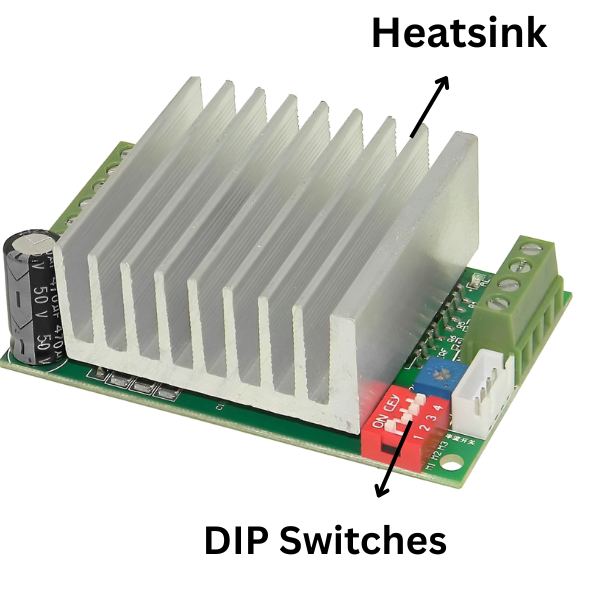

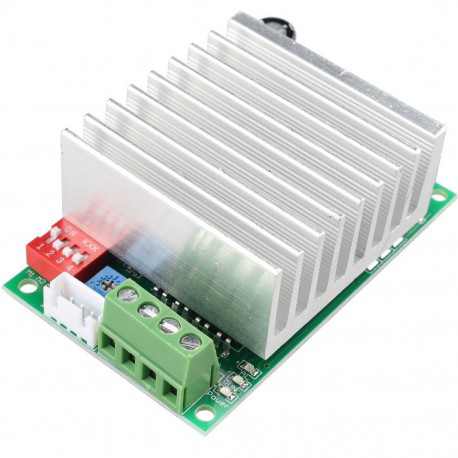

TB6600 4.5A Single Axis Stepper Motor Driver Board

• High Current Output: Delivers up to 4.5A peak current for powerful motor operation.
• Micro-stepping: Supports micro-stepping for smoother and quieter movements.
• Wide Voltage Range: Operates from 10V to 45V DC, accommodating various power sources.
• Overcurrent Protection: Built-in protection to prevent damage from excessive currents.
• Thermal Protection: Automatically shuts down to prevent overheating.
• Easy-to-Use: Simple interface with clear labeling and easy-to-follow connections.

• CNC machines
• 3D printers
• Robotics
• Automation systems
• Industrial equipment
• Hobby projects

• Operating Voltage: 10-45V DC
• Peak Output Current: 4.5A
• Micro-stepping: 1, 2, 4, 8, 16
• Control Mode: Half-step, full-step, micro-stepping
• Overcurrent Protection: Yes
• Thermal Protection: Yes

DATA SHEET AND USECASE

Key Features:

• Input Voltage: Operates within a range of 10V to 45V DC.

• Output Current: Capable of delivering up to 4.5A, with adjustable settings to match specific motor requirements.

• Micro-stepping: Supports multiple micro-stepping modes, including full step, half step, 1/4, 1/8, and 1/16 steps, allowing for precise motor control.

• Protection Features: Equipped with safeguards against over-current, over-temperature, and short circuits to ensure reliable operation.
