TCRT5000 Single Channel Line Tracking Sensor Module

• Infrared Detection: Uses IR light for reliable detection.
• High Sensitivity: The TCRT5000 sensor provides stable and sensitive detection.
• Adjustable Sensitivity: Many modules include a potentiometer for adjusting sensitivity.
• Digital Output: Typically provides a digital output signal.
• Compact Design: Small and easy to integrate into various projects.
• Easy Installation: often includes mounting holes.

• Line-Following Robots: Used in robots to follow a designated path.
• Automated Guided Vehicles (AGVs): Enables AGVs to navigate predefined routes.
• Object Detection: Can be used for basic object detection and proximity sensing.
• Meter Pulse Sampling: Used for reading pulses from meters.
• Paper Shredders/Fax Machines: Used for paper detection.
• Obstacle Avoidance: in some basic applications.

• Operating Voltage: Typically 3.3V to 5V DC.
• Sensing Distance: Optimal sensing distance is usually around 3mm, but it can vary.
• Output Type: Digital (typically high/low).
• Supply Current: varies, but is generally low.
• Component: TCRT5000 reflective optical sensor.

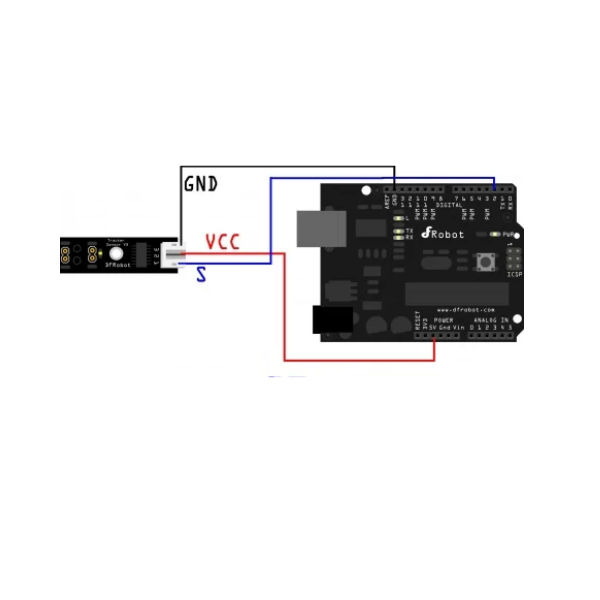

DATA SHEET AND USECASE

Key Features:

• Package Type: Leaded
• Detector Type: Phototransistor
• Dimensions: 10.2 mm (L) x 5.8 mm (W) x 7 mm (H)
• Peak Operating Distance: 2.5 mm
• Operating Range: 1 mm to 8 mm
• Wavelength: 950 nm
• Daylight Blocking Filter: Included
