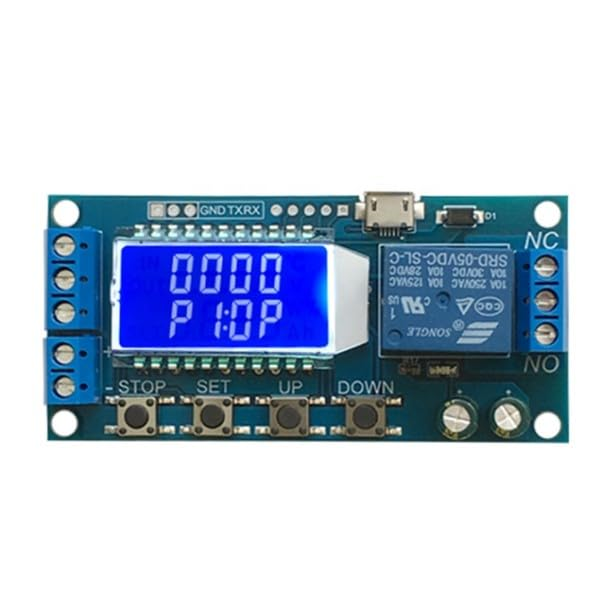

Time Delay Relay Module 6-30V with Digital LCD Display and Micro Usb Port

Precise Control, Endless Possibilities: 6-30V 1-Channel Power Relay Module

Introducing our versatile 6-30V 1-channel power relay module, designed to provide precise control and timing for your various applications. With its adjustable timing cycles, wide voltage range, and robust construction, this module is a valuable asset for home automation, industrial control, and more.

Key Features:

• Adjustable Timing Cycles: Customize the on/off times to meet your specific needs.
• Wide Voltage Compatibility: Operates from 6-30V DC and supports micro USB power supply.
• Powerful Output: Control devices up to 30V DC 5A or 220V AC 5A.
• Flexible Operation Modes: Choose from various modes to suit your application.
• Easy-to-Use Interface: Intuitive interface for simple setup and configuration.
• Durable Construction: Built to withstand demanding environments.

Applications:

• Home automation
• Industrial control
• Security systems
• Laboratory equipment
• And more!

Take control of your devices with our versatile power relay module.

DATA SHEET AND USECASE

Key Features:

• Wide Operating Voltage: Supports a broad voltage range from 6V to 30V DC and can also be powered via a standard 5V Micro USB connection, offering flexibility in various power scenarios.

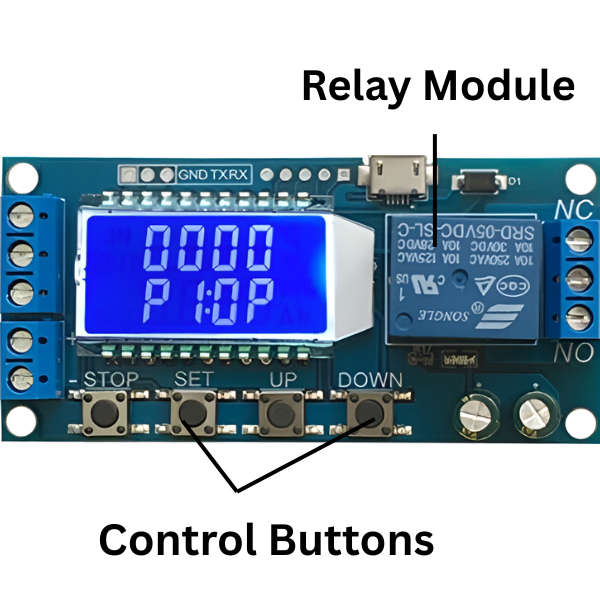

• LCD Display: Equipped with a clear LCD screen that displays current modes and parameters, facilitating easy setup and monitoring.

• Multiple Trigger Modes: Supports high-level (3.0V–24V), low-level (0.0V–0.2V), and switch control triggers, accommodating diverse application requirements.

• Adjustable Timing Range: Allows precise timing adjustments from as short as 0.01 seconds up to 9999 minutes, providing versatility for various timing needs.

• Output Capacity: Capable of controlling devices operating within DC 30V/5A or AC 220V/5A, making it suitable for a wide range of electrical devices.

• Safety Features: Includes reverse connection protection to prevent damage from incorrect wiring and an emergency stop function for immediate deactivation when necessary.
