TYPE-B To DIP 2.54mm Pin 4P Adapter Board

Description

This adapter board provides a convenient way to connect USB Type-B devices to breadboards or other projects with 2.54mm pin headers. It eliminates the need for soldering and simplifies the integration of USB devices into DIY projects.

Application

• Prototyping: Quickly and easily prototype circuits with USB devices.
• Testing: Conveniently test and debug USB devices without the need for specialized equipment or skills.
• Education: Use in educational settings to demonstrate and experiment with USB technology.
• Hobbyist Projects: Perfect for DIY electronics enthusiasts to incorporate USB devices into their projects.

Key Features

• Direct Connection: Provides a direct connection between a USB Type-B connector and a 2.54mm pin header.
• Easy-to-Use: Simple to assemble and connect to breadboards or other circuits.
• Durable Construction: Built with high-quality materials for long-lasting use.
• Compact Design: Small and lightweight for easy integration into projects.

DATA SHEET AND USECASE

Key Features:

• USB Type-B Female Connector: Provides a standard interface for USB connections, commonly used in devices like printers and microcontrollers.

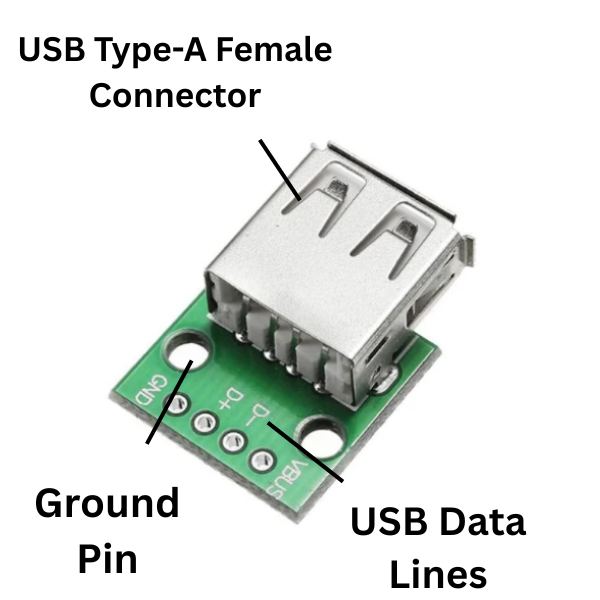

• 4-Pin Output: Breaks out the four USB pins—VBUS (5V), D+, D-, and GND—to 2.54mm spaced pins, making it compatible with standard breadboards and perfboards.

• Compact Design: The adapter's small form factor ensures it occupies minimal space in your project setup.
