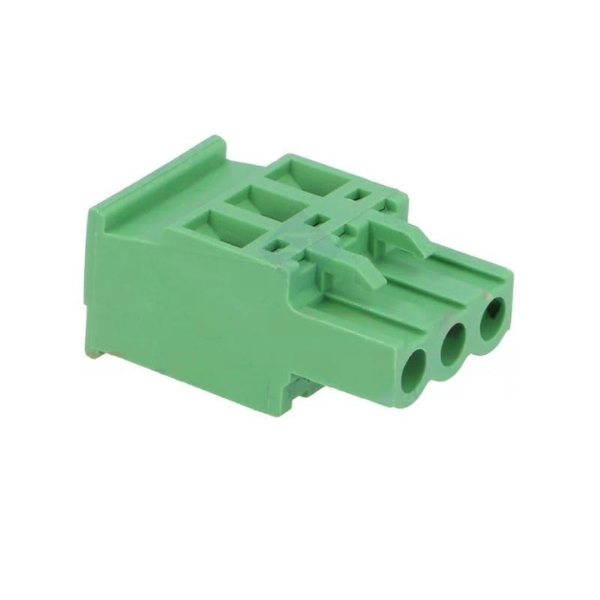

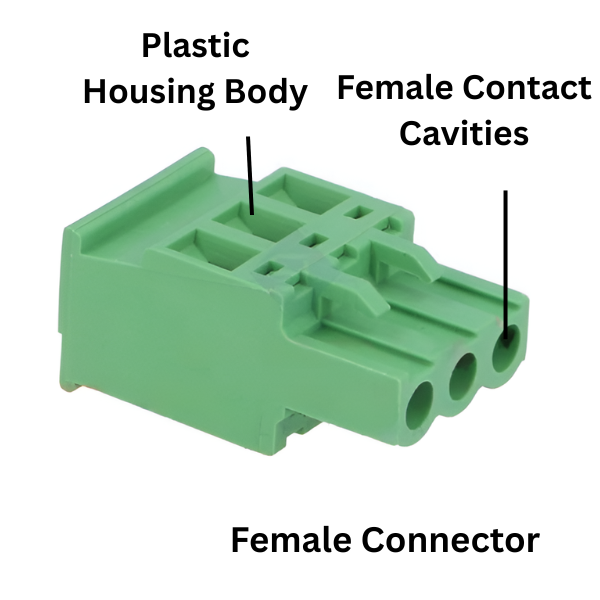

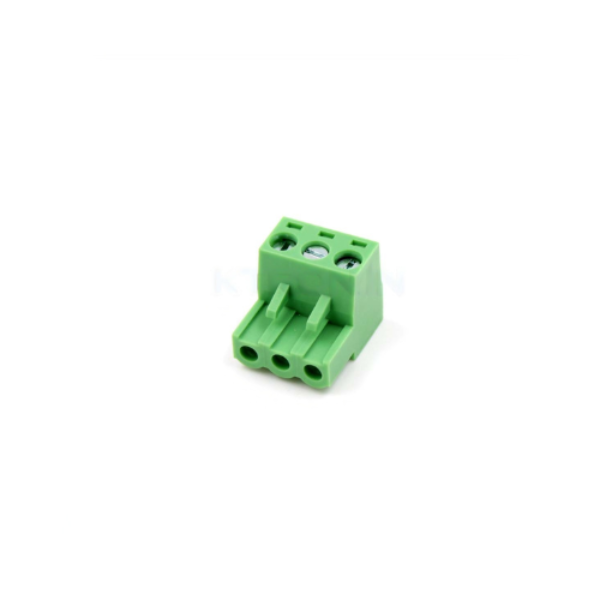

Xinya XY2500 3 Pin Right Angle Connector Female 5.08mm Pitch Pack 05

3-Pin 5mm Pitch Pluggable PCB Terminal Block

Simplify Wiring and Enhance Efficiency with this Reliable Connector

Our 3-pin 5mm pitch pluggable PCB terminal block offers a secure and convenient solution for connecting wires to your printed circuit boards (PCBs).With its three pins spaced 5mm apart, this terminal block allows for easy and flexible wiring configurations.

• Pluggable Design: Easily connect and disconnect wires without soldering, saving time and effort.
• Versatile Applications: Ideal for various electronic projects, including industrial controls, automation systems, and hobbyist projects.
• Durable Construction: Built to withstand harsh environments and provide long-lasting performance.
• High Current Capacity: Handles up to 30 amps, making it suitable for demanding applications.

Specifications:

• Number of Pins: 3
• Pitch: 5mm
• Rated Voltage: 300V
• Rated Current: 30A
• Wire Range: 33-13 AWG
• Contact Resistance: 30m max
• Operating Temperature Range: -40°C to 105°C
• Material: Housing: PA33, UL94V-0; Contact: Brass, Tin-plated

Package Includes:

• 1 x 3-Pin 5mm Pitch Pluggable PCB Terminal Block

Order your 3-pin 5mm pitch terminal block today and experience the benefits of efficient and reliable wiring solutions.

DATA SHEET AND USECASE

Key Specifications:

• Voltage Rating: 300V
• Current Rating: 12A
• Pitch: 5.08mm
• Wire Range: Supports 18-12 AWG (up to 2.5 mm²)
• Housing Material: PA66 (UL 94V-0)
• Wire Cage Material: Brass (Nickel Plated) or Steel (Zinc Plated)
• Clamp Material: Phosphor Bronze, Nickel Plated
• Screw: M2.5, Steel (A3), Zinc Plated
• Torque: 0.4 N.m
