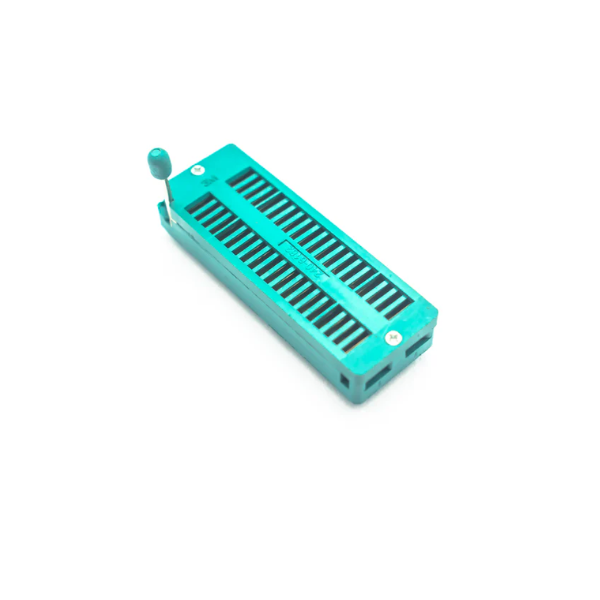

40 Pin ZIF Socket Base IC DIP Test Board Socket

Description:

Our 40-pin ZIF (Zero Insertion Force) IC test socket is a valuable tool for programmers and electronics enthusiasts. It provides a convenient and secure way to connect and test integrated circuits (ICs) without damaging their delicate pins.

Key Features:

• Zero Insertion Force: Easily insert and remove ICs with minimal effort.
• Lever Mechanism: Securely locks ICs in place for reliable testing.
• 40-Pin Compatibility: Accommodates a wide range of 40-pin DIP ICs.
• Durable Construction: Built to last with high-quality materials.
• Through-Hole Mounting: Easily integrates into your circuit board or breadboard.

Applications:

• IC Programming: Program and test various types of 40-pin ICs.
• Electronics Development: Experiment with different ICs in your projects.
• Education: Demonstrate the functionality of ICs in educational settings.
• Hobbyists and Makers: Use for various electronic projects and experiments.

Specifications:

• Number of Pins: 40
• Pin Pitch: 2.54mm
• Dimensions: 65mm x 22.6mm x 14mm
• Mounting Type: Through-hole
• Operating Current: 1A

Order now and streamline your IC testing and development process with our 40-pin ZIF IC test socket!

DATA SHEET AND USECASE

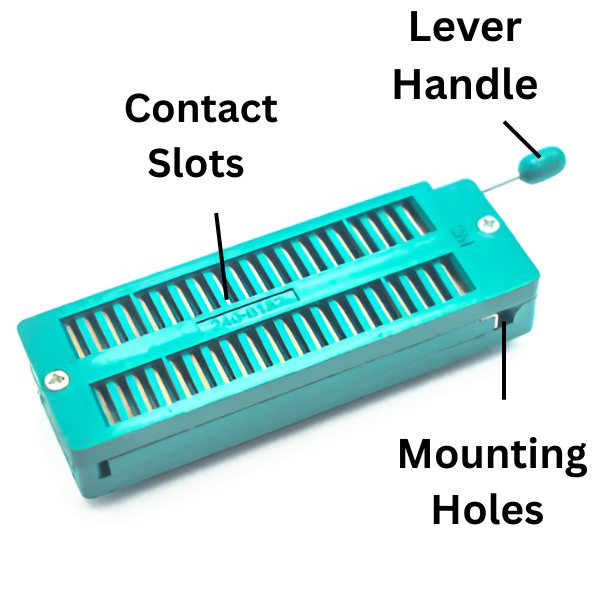

Key Features:

• Zero Insertion Force: Utilizes a lever mechanism to open and close the contacts, allowing ICs to be inserted and removed with minimal effort.
• Compatibility: Accommodates a wide range of 40-pin DIP ICs with pin pitches typically at 2.54mm.
• Durable Construction: Built with high-quality materials, often featuring gold-plated contacts to ensure reliable connections and longevity.

• Through-Hole Mounting: Designed for easy integration into circuit boards or breadboards.
