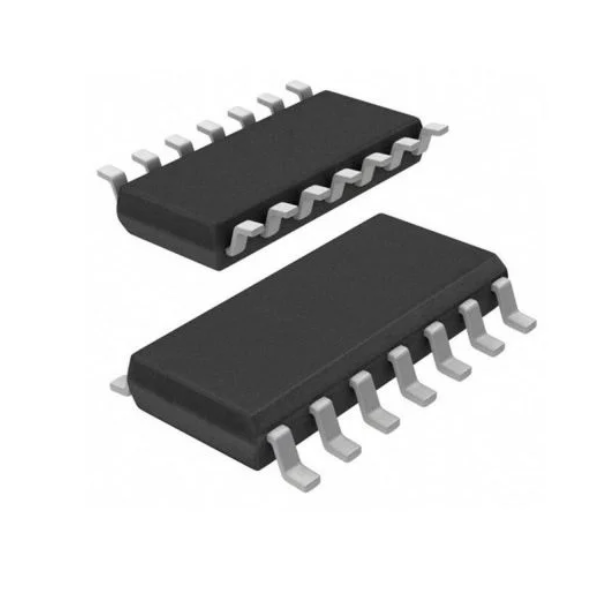

74HC238 SMD IC

Description

The 74HC238 is a versatile integrated circuit (IC) that functions as a 3-to-8 line decoder/de-multiplexer. It's designed to convert a 3-bit binary input into one of eight mutually exclusive outputs. Additionally, it can be used as a de-multiplexer to route data to one of eight output lines based on the input address.

Key Features

• 3-to-8 Line Decoder: Converts 3-bit binary input (A0, A1, A2) to one of eight active-low outputs (Y0-Y7).
• De-multiplexer: Routes data to one of eight output lines based on the input address.
• Three Enable Inputs (E1, E2, E3): Provide flexible control over the decoder/de-multiplexer operation.
• CMOS Technology: Offers low power consumption and high noise immunity.
• Surface Mount Device (SMD): Suitable for space-constrained applications.
• Wide Supply Voltage Range: Operates from 2V to 6V.

Specifications

• Supply Voltage (Vcc): 2V to 6V
• Input Voltage Levels: CMOS compatible
• Output Current: 20mA (typical)
• Propagation Delay: Typically 15ns
• Operating Temperature: -40°C to +85°C
• Package: 16-pin SOIC (Surface Mount)

Applications

• Memory Address Decoding: Selecting specific memory locations.
• Peripheral Device Selection: Controlling the communication with peripheral devices.
• Data Routing: Directing data to specific channels.
• Digital Logic Design: Implementing various digital logic functions.

DATA SHEET AND USECASE

Key Features:

• Demultiplexing capability
• Multiple enable inputs for easy expansion
• Ideal for memory chip-select decoding
• Active HIGH mutually exclusive outputs
• Standard output capability
• Complies with JEDEC standard no. 7A
• Input levels: CMOS level for 74HC238; TTL level for 74HCT238
• ESD protection: HBM JESD22-A114F exceeds 2000 V; MM JESD22-A115-A exceeds 200 V
• Specified operating temperature range: -40°C to +125°C
