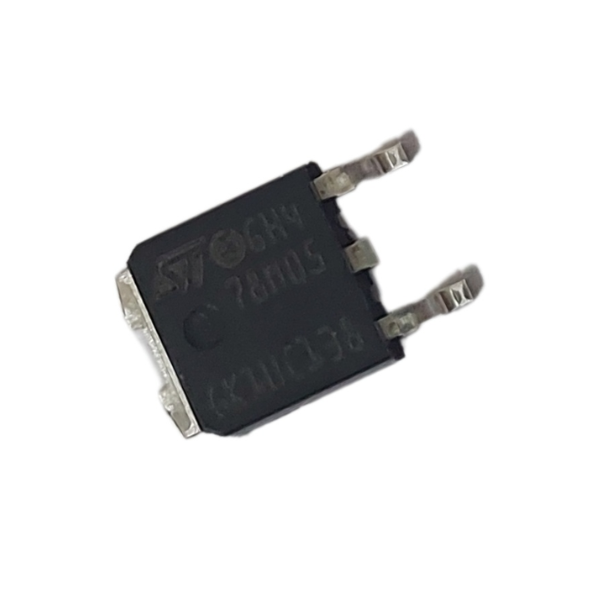

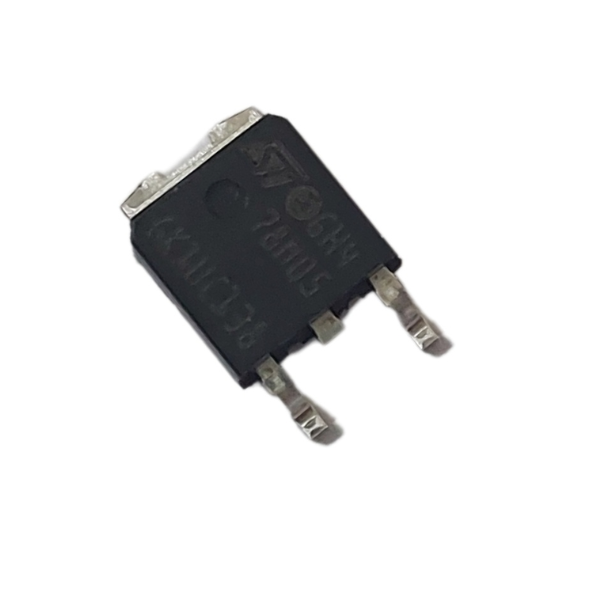

78M05 (7805)- 5V Positive Voltage Regulator IC Pack 5

78M05 Series: Reliable and Versatile Positive Voltage Regulators

The 78M05 series offers a range of three-terminal positive voltage regulators, providing stable and reliable power solutions for various electronic applications. With their compact TO-220/D-PAK package and robust protection features, these regulators are ideal for a variety of projects.

Key Features:

• Multiple Output Voltages: Available in 5V, 6V, 8V, 12V, 15V, 18V, and 24V to suit your specific needs.
• High Current Capability: Delivers up to 0.5A of output current, making it suitable for powering various devices.
• Thermal Overload Protection: Safeguards against overheating, preventing damage to the regulator and surrounding components.
• Short-Circuit Protection: Protects against short-circuit conditions, safeguarding the regulator and connected circuitry.
• Output Transistor Safe Operating Area (SOA) Protection: Ensures safe operation during output voltage transitions, preventing excessive power dissipation.

Applications:

• Power Supplies: Used in various power supply circuits to provide regulated output voltages.
• Industrial Control: Employed in industrial control systems for reliable power regulation.
• Instrumentation: Powers instruments and measurement devices.
• Consumer Electronics: Widely used in consumer electronics for power supply and regulation.

Specifications:

• Output Voltages: 5V, 6V, 8V, 12V, 15V, 18V, 24V
• Output Current: Up to 0.5A
• Protection: Thermal overload, short-circuit, output transistor SOA
• Package: TO-220/D-PAK
