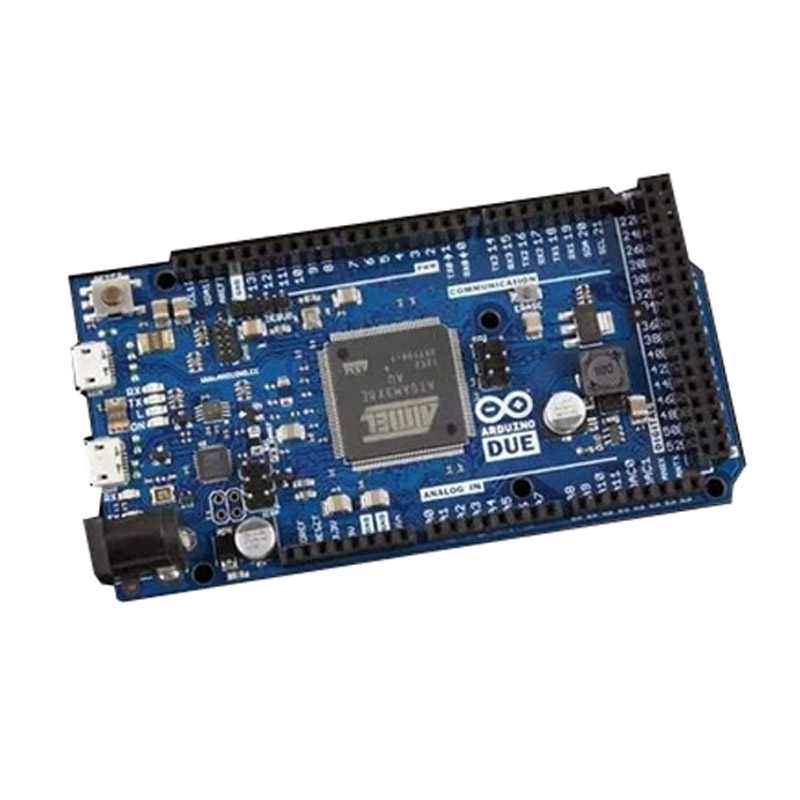

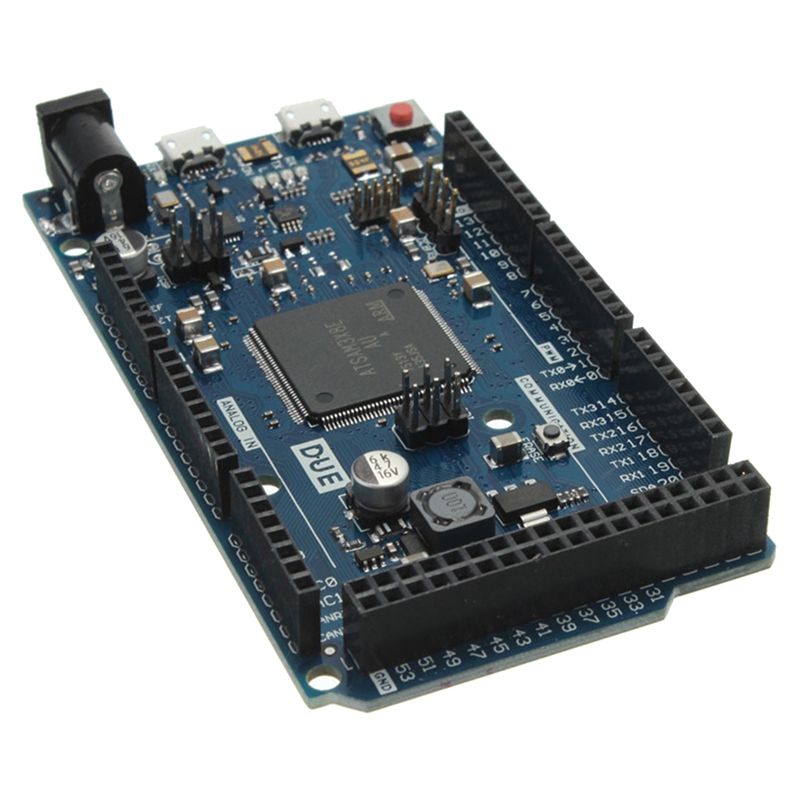

Arduino Due R3 ARM CORTEX-M3 board with cable

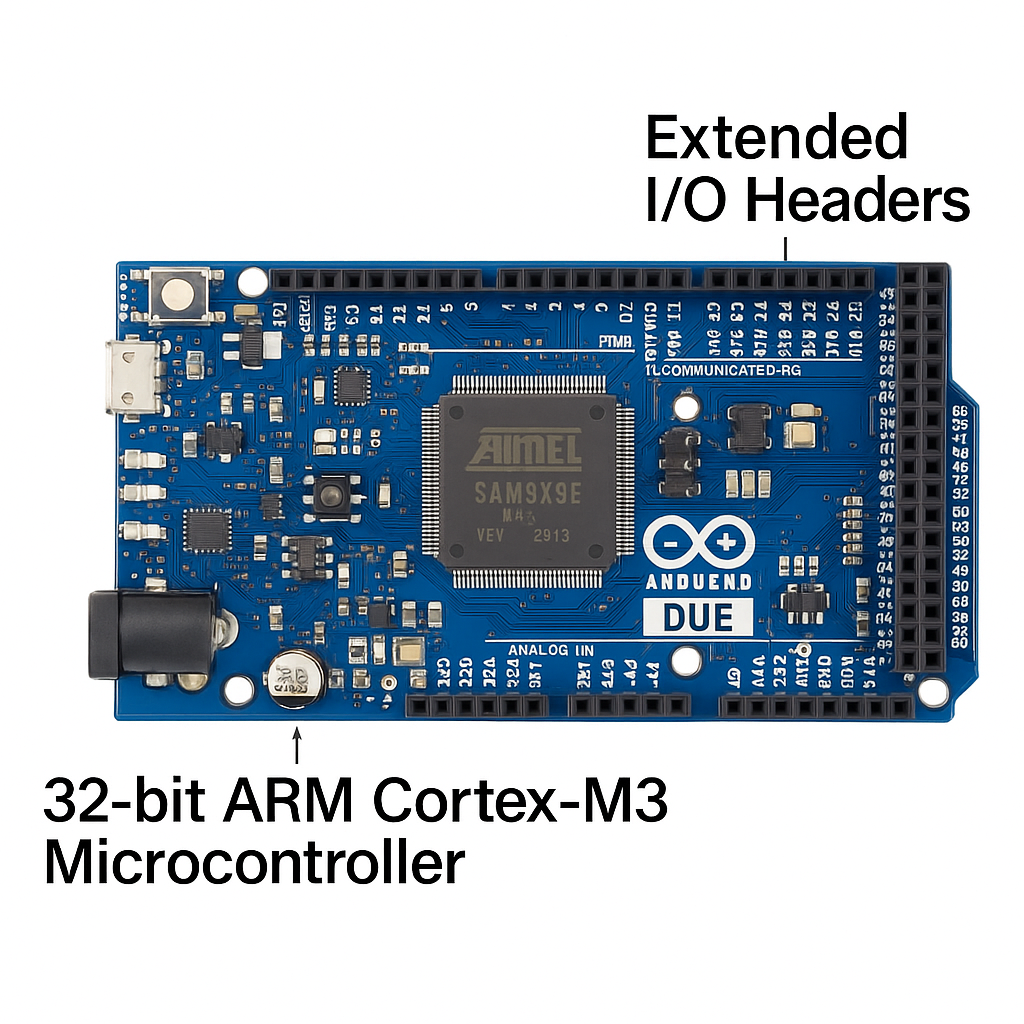

Arduino Due - 32-bit ARM Cortex-M3 Microcontroller Board

Elevate your electronic projects with the powerful Arduino Due microcontroller board. This advanced board features a 32-bit ARM Cortex-M3 CPU, offering exceptional performance and versatility.

Key Features:

• 32-bit ARM Cortex-M3 CPU: Delivers high-speed processing capabilities.
• 54 Digital I/O Pins: Versatile input/output options for various applications.
• 12 Analog Inputs: Precise analog signal measurement.
• 4 UARTs: Flexible serial communication capabilities.
• 84 MHz Clock: Fast processing speeds.
• USB OTG: Connect to host or peripheral devices.
• 2 DACs: Generate analog signals.
• 2 TWI: Communicate with I²C devices.
• Onboard Erase Button: Easily erase the flash memory.

Applications:

• Robotics: Complex robotic control and automation.
• IoT Devices: Develop advanced internet-connected devices.
• Industrial Automation: Control and monitor machinery and equipment.
• Scientific Research: Conduct experiments and data analysis.
• Custom Electronic Projects: Create unique and innovative applications.

Specifications:

• Microcontroller: AT91SAM3X8E
• Operating Voltage: 3.3V
• Input Voltage: 7V-12V (recommended), 6-16V (limits)
• Digital I/O Pins: 54 (12 PWM)
• Analog Input Pins: 12
• Analog Output Pins: 2 (DAC)
• CPU Clock: 84 MHz
• Flash Memory: 512KB
• SRAM: 96KB
• Interface: USB OTG
• Package: Compact form factor

Conclusion:

The Arduino Due is a powerful and versatile microcontroller board that opens up new possibilities for your electronic projects. Its 32-bit ARM Cortex-M3 CPU, extensive I/O capabilities, and fast processing speed make it an ideal choice for demanding applications.

DATA SHEET AND USECASE

Key Features:

• Digital Input/Output Pins: 54 pins, with 12 supporting PWM output.
• Analog Inputs: 12 channels with 12-bit resolution.
• Analog Outputs: 2 DAC channels for true analog output.
• Clock Speed: 84 MHz.
• Memory: 512 KB Flash, 96 KB SRAM.
• Communication Interfaces: 4 UARTs, USB OTG, 2 TWI (I²C), SPI header, and CAN bus support.
• Operating Voltage: 3.3V (Note: I/O pins are not 5V tolerant).
