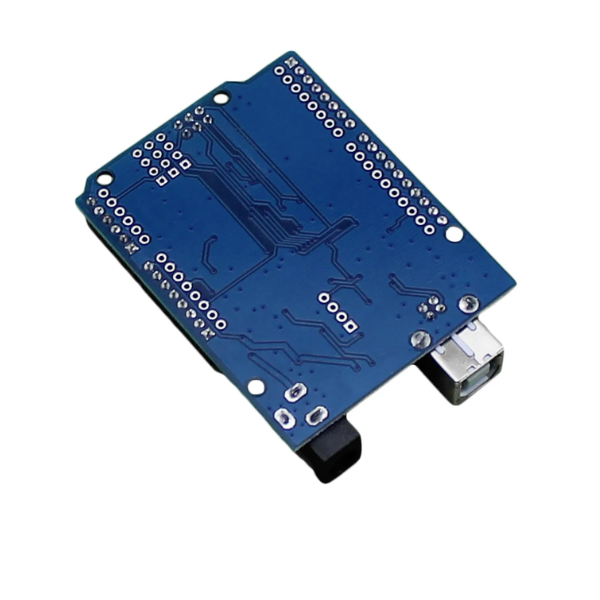

Arduino Uno R3 SMD CH340G ATmega328p Development Board

The Arduino Uno R3 SMD CH340G ATmega328p Development Board is a popular and versatile microcontroller board based on the ATmega328p microcontroller. It features a surface-mount design (SMD) and uses the CH340G USB-to-serial converter chip, providing a reliable and efficient way to connect the board to a computer.

Key Features:

• ATmega328p Microcontroller: Offers a powerful and versatile computing platform with 32 KB of flash memory and 2 KB of SRAM.
• CH340G USB-to-Serial Converter: Provides a reliable and efficient connection to a computer's USB port.
• SMD Design: Features a surface-mount design for smaller size and easier integration.

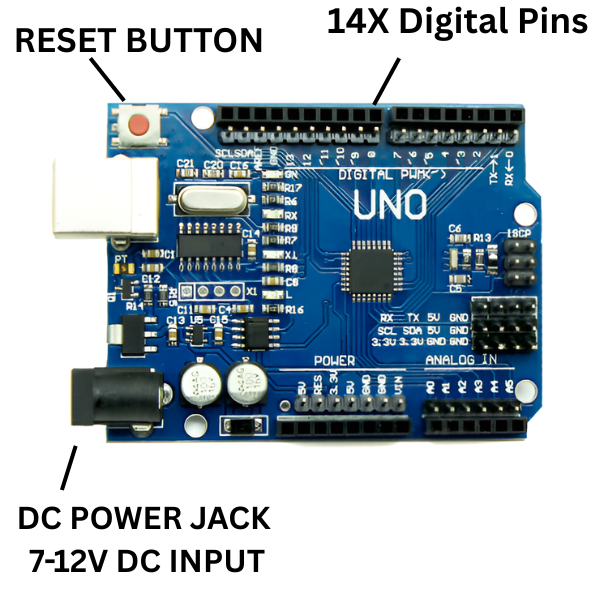

• 14 Digital Input/Output Pins: Provides a variety of pins for controlling digital devices and sensors.
• 6 Analog Inputs: Allows for analog measurements and sensing.
• 16 MHz Crystal Oscillator: Provides a stable clock source for the microcontroller.
• On-board Reset Button: Allows for easy resetting of the board.
• Power Jack: Provides a convenient way to power the board from an external power source.
• TX and RX LEDs: Indicate serial communication activity.

Applications:

• Robotics: Controlling motors, sensors, and actuators.
• IoT Projects: Connecting devices to the internet for remote monitoring and control.
• Educational Purposes: Learning about electronics and programming.
• Hobby Projects: Creating custom gadgets and devices.

DATA SHEET AND USECASE

Key Features:

• Microcontroller: ATmega328P

• USB-to-Serial Converter: CH340G

• Digital I/O Pins: 14 (6 provide PWM output)

• Analog Input Pins: 6

• Operating Voltage: 5V

• Input Voltage (recommended): 7-12V

• Clock Speed: 16 MHz
