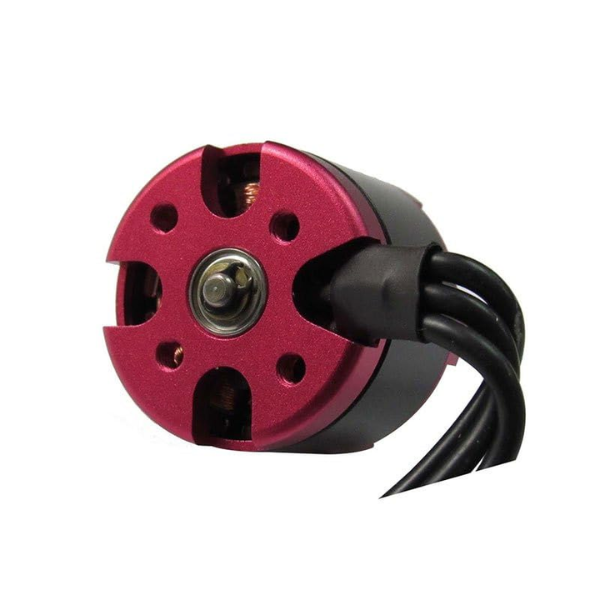

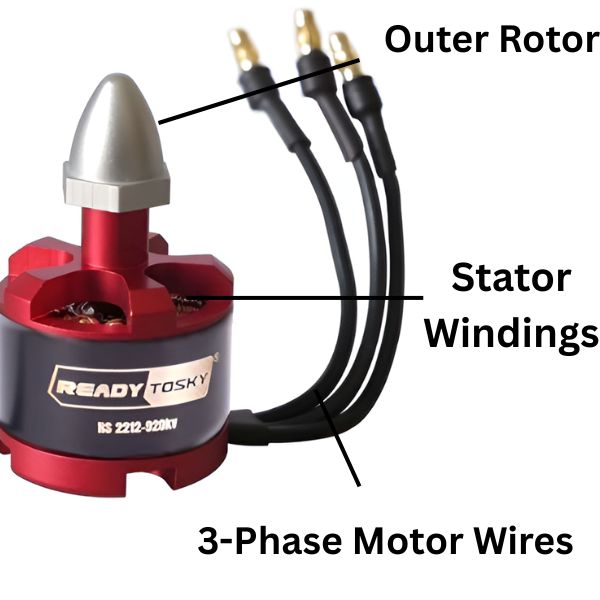

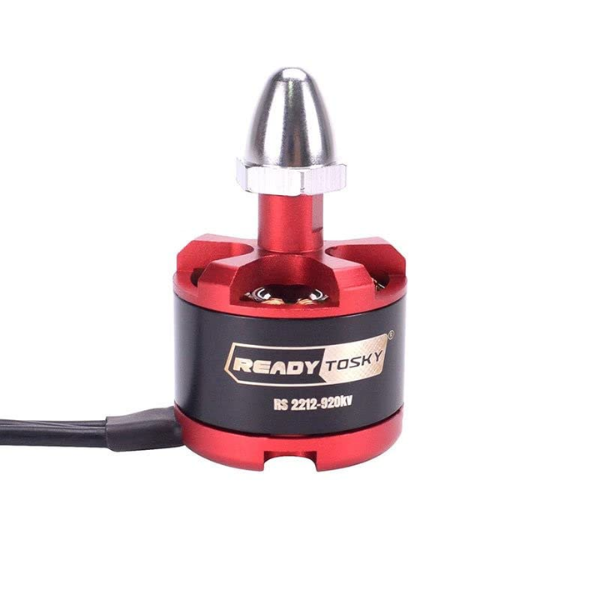

BRUSHLESS DC MOTOR 2212 920KV READYTOSKY(CCW ROTATION)

Description:

Experience the power and precision of our high-quality 2212 920KV brushless motor, a reliable alternative to the original DJI motors. Designed for optimal performance and durability, this motor offers exceptional value without breaking the bank.

Features:

• Powerful Performance: Generate up to 0.5kg of thrust when paired with Orange series 1045 ABS propellers, 3S Li-PO batteries, and SimonK 30A ESC.
• Stable and Reliable: Engineered to withstand competitive conditions and deliver consistent performance.
• Compact Design: Lightweight and compact form factor for easy integration into your drone or other projects.
• Cost-Effective: Enjoy excellent performance and value without the high price tag of premium brands.

Specifications:

• Motor Rotation: CCW
• Thrust: Around 0.5 kg
• LiPO Batteries: 3S-4S
• ESC: 30 A
• Shaft Diameter: 6 mm

Tips for Optimal Performance:

• Avoid takeoff and landing in dirt or loose soil to prevent motor damage.
• Clean the motors with a hairdryer or blower after 4-5 flights to extend their lifespan.

Package Includes:

• 1 x 2212 920KV Brushless Motor for DJI
• 1 x Silver Cap

DATA SHEET AND USECASE

Key Specifications:

• Motor KV (RPM/V): 920
• Rotation Direction: Counter-Clockwise (CCW)
• Compatible LiPo Batteries: 3S to 4S
• Recommended Electronic Speed Controller (ESC): 30A
• Shaft Diameter: 6 mm
• Dimensions: 28 mm (width) x 28 mm (length) x 46 mm (height)
• Weight: Approximately 60 grams
• Thrust: Approximately 500 grams per motor
