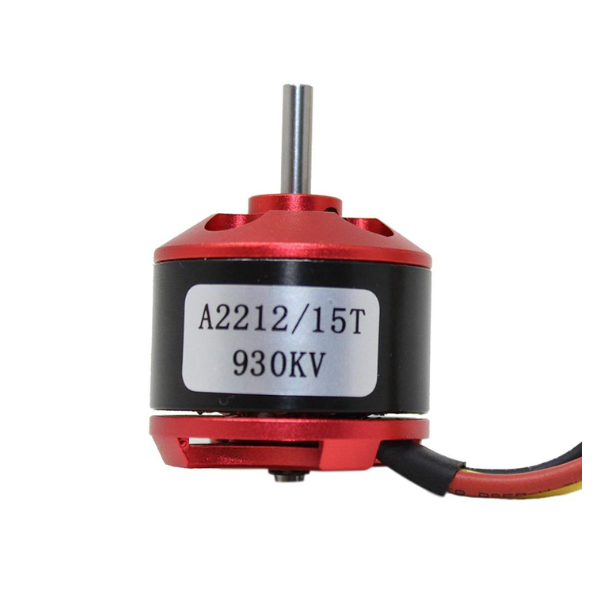

Brushless DC Motor A2212/15T 930KV Racerstar Compatible

Power Up Your RC Aircraft with the A2212/15T 930KV Brushless Motor

Experience exceptional performance and durability with our A2212/15T 930KV brushless motor. This high-quality motor is designed to deliver powerful and efficient flight for your RC fixed-wing and multicopter aircraft.

Key Features:

• Premium Construction: Crafted with high-quality materials, including NMB ball bearings, efficient stator steel, and oxygen-free pure copper wires.
• Temperature Resistance: Withstands high temperatures thanks to N40UH magnets and silicone wire leads.
• Powerful Performance: Delivers exceptional power and speed with its 930KV rating.
• Precise Balance: Patented balance techniques ensure smooth and stable operation.
• Versatile Compatibility: Suitable for RC fixed-wing airplanes and multicopters.

Specifications:

• Model: A2212 15T 930KV
• Stator Diameter: 22mm
• Stator Thickness: 12mm
• Motor Resistance: 163mΩ
• No-Load Current: 0.6A
• Max Continuous Power: 15A
• Max Continuous Current: 28A/30S
• Body Length: 40mm
• Recommended ESC: 15A

DATA SHEET AND USECASE

Key Specification:

• Motor Type: Brushless DC Motor (BLDC)
• Model Number: A2212/15T
• KV Rating: 930KV (RPM per volt)
• Motor Size: 22mm diameter, 12mm length (measured by stator size)
• Number of Stator Turns: 15T
• Recommended Voltage: 3S LiPo (11.1V), but it can be used on 2S (7.4V) or 4S (14.8V) with appropriate adjustments.
• Max Current: Typically around 18A
• Shaft Diameter: 3.17mm
• Mounting Hole Distance: 16mm (for motor mount compatibility)
• Weight: Approximately 45 grams
• Max Power Output: 200W
• Rotation: CW (Clockwise) and CCW (Counterclockwise), with appropriate mounting options.
