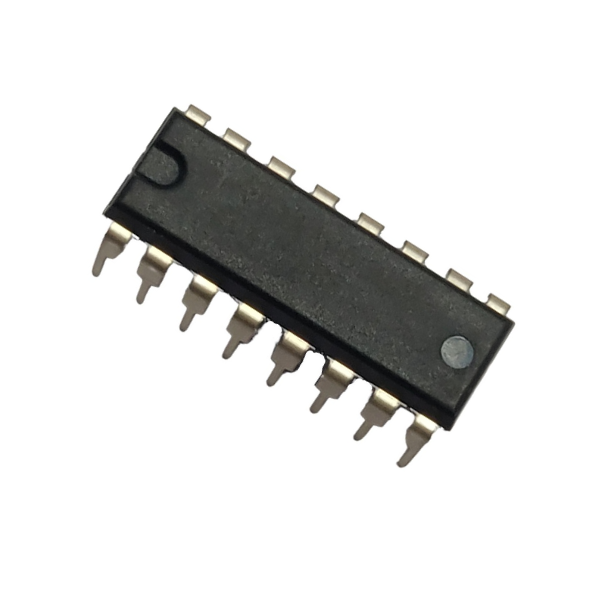

CD4026BE Logic IC Decade Counter/Divider,DIP-16 CD4026BE (DIL16)IC Pack 2

CD4026B: A Versatile Decade Counter/Divider with 7-Segment Decoder

The CD4026B is a powerful integrated circuit designed to perform decade counting and decode the output for driving 7-segment displays. Its low power consumption and efficient design make it ideal for various applications requiring precise timing and display functions.

Key Features:

• 5-Stage Johnson Counter: Provides a flexible and accurate decade counting mechanism.
• 7-Segment Decoder: Decodes the counter output for direct driving of 7-segment displays.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered or energy-efficient systems.
• Versatile Inputs and Outputs: Offers a variety of inputs and outputs for customization and integration.
• Standardized Output Characteristics: Provides consistent and reliable output signals.

Applications:

• Digital Clocks and Watches: Used in clocks and watches to display time and date information.
• Timers: Employed in timers to provide accurate timekeeping.
• Frequency Division: Used for frequency division applications, such as generating lower frequencies from a higher frequency source.
• Meter Displays: Drives 7-segment displays in meters and instruments for numerical indication.

Specifications:

• Function: Decade counter/divider
• Output: 7-segment decoded output
• Package: DIP-16
• Operating Temperature: -55°C to 125°C
• Inputs: CLOCK, RESET, CLOCK INHIBIT, DISPLAY ENABLE
• Outputs: CARRY OUT, a, b, c, d, e, f, g, DISPLAY ENABLE, UNGATED "C-SEGMENT"
