Description:

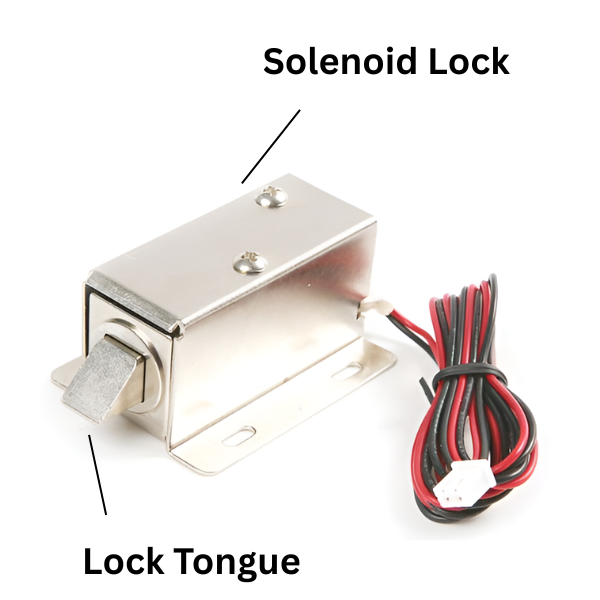

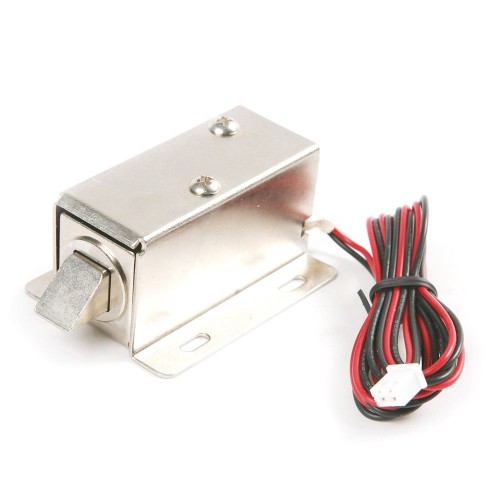

A DC 12V magnetic cabinet door lock solenoid is an electromagnetic device designed to provide electronic locking for cabinets, drawers, and other enclosures. When energized with a 12V DC power supply, it retracts a bolt or plunger, allowing the door to open. When the power is removed, a spring mechanism typically returns the bolt to its locked position.
Key Features:
- 12V DC Operation: Compatible with standard 12V power supplies.
- Electromagnetic Mechanism: Provides reliable and fast locking/unlocking.
- Compact Design: Suitable for installation in confined spaces.
- Low Power Consumption: Efficient operation for prolonged use.
- Durable Construction: Built to withstand repeated use.
- Fail-Safe Locking: Typically designed to remain locked when power is lost.
- Simple Wiring: Easy to integrate into electronic control systems.
Applications:
- Cabinet Locks: Securing cabinets in homes, offices, and industrial settings.
- Drawer Locks: Protecting valuable items in drawers.
- Electronic Lockers: Implementing electronic locking in lockers at gyms, schools, and workplaces.
- Vending Machines: Controlling access to vending machine compartments.
- Access Control Systems: Integrating with access control systems for controlled entry.
- Smart Homes: Automating locking mechanisms in smart home applications.
- Security Systems: Enhancing security in various security applications.
- Automated storage.
Specifications:
- Operating Voltage: 12V DC
- Current Consumption: Varies depending on the model.
- Holding Force: The force the solenoid can withstand while locked.
- Stroke Length: The distance the bolt or plunger travels.
- Dimensions: Physical dimensions of the solenoid.
- Operating Temperature: The range of temperatures the solenoid can operate within.
- Material: Usually metal construction.
- Unlock time: the amount of time it takes to unlock.
DATA SHEET AND USECASE
Key Specifications:
- Operating Voltage: 12V DC ±10%
- Power Consumption: Varies by model; common values include 9W and 24W
- Current Draw: Approximately 0.6A to 2A when activated
- Stroke Force: Ranges from 50gf to 85gf, depending on the model
- Stroke Length: Typically between 6mm to 8mm
- Operating Temperature: Ranges from -20°C to +80°C
- Duty Cycle: Intermittent use recommended; continuous activation can lead to overheating
