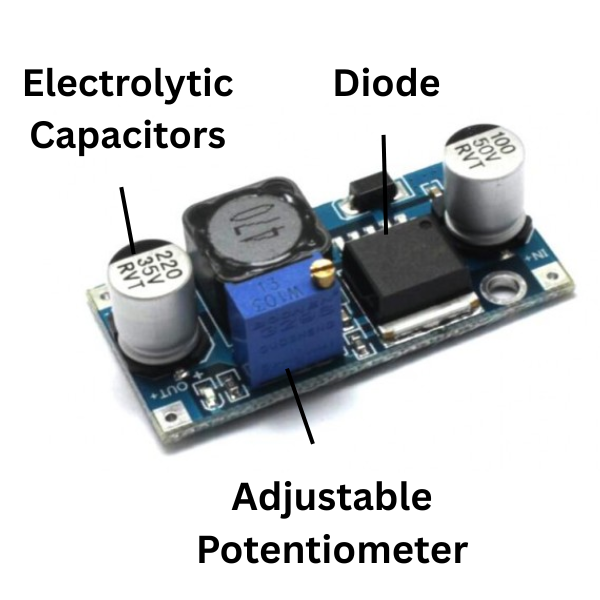

DC-DC ADJUSTABLE VOLT. REGULATOR LM2596 3A

Description

This DC-DC adjustable voltage regulator module utilizes the LM2596 integrated circuit to provide a highly efficient and stable output voltage. It can be used to step down input voltages to a desired output level, making it a versatile component for various electronic projects.

Key Features

• LM2596 IC: Ensures high efficiency and low dropout voltage.
• Adjustable Output Voltage: Allows for precise voltage regulation to meet specific requirements.
• 3A Output Current: Can handle significant current loads for various applications.
• Compact Size: Suitable for space-constrained designs.
• Easy to Use: Requires minimal external components for operation.
• Thermal Shutdown Protection: Prevents overheating and damage to the module.

Applications

This DC-DC adjustable voltage regulator module is commonly used in:

• Electronics Projects: Powering Arduino boards, Raspberry Pis, and other electronic devices.
• LED Lighting: Driving LED strips, bulbs, and other lighting fixtures.
• Battery-Powered Devices: Providing regulated power for portable devices.
• Industrial Automation: Powering sensors, actuators, and control systems.
• Laboratory Equipment: Supplying power for scientific instruments.

DATA SHEET AND USECASE

Key Features:

• Wide Input Voltage Range: Operates from 4.5V to 40V, accommodating various power sources.

• High Efficiency: Achieves efficiencies up to 90%, reducing heat generation and power loss.

• Fixed Switching Frequency: Operates at a 150 kHz fixed frequency, simplifying filter design.

• Low Standby Current: Features a low power standby mode with a typical quiescent current of 80 µA.

• Protection Features: Includes thermal shutdown and current limit protection to safeguard the device during fault conditions.
