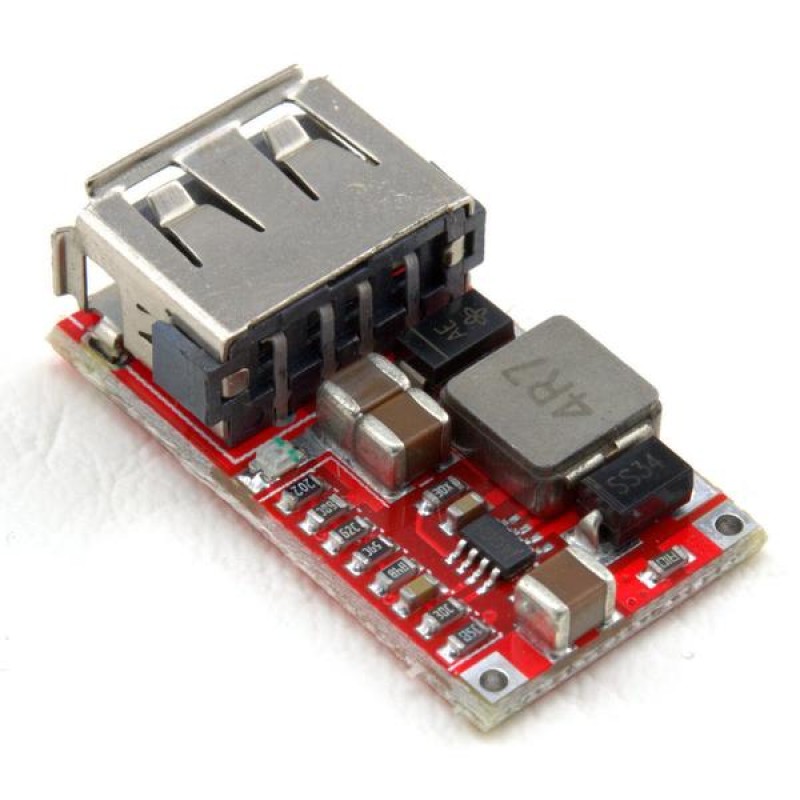

DC-DC BUCK CONVERTER 6V-24V TO 5V 3A USB OUTPUT MODULE

• Powerful Performance: Delivers a maximum output current of 3A for demanding devices.
• Enhanced Safety: Equipped with overvoltage protection and a 1.5A fuse for added security.
• High Efficiency: Converts input power into 5V output with minimal loss, ensuring optimal performance.
• Wide Input Voltage Range: Compatible with input voltages ranging from 6V to 24V.
• Compact Design: Small footprint for easy integration into your projects.
• Versatile Compatibility: Works seamlessly with a variety of devices, including iPhones, Android phones, and iPads.
• Reliable Operation: Ensures stable and consistent power output.

• Input Voltage: DC 6-24V
• Output Voltage: 5.1-5.2V
• Output Current: 3A MAX (ensure adequate heat dissipation for full load use)
• Switch Frequency: 500KHz
• Output Ripple: Approximately 10mV (12V to 5V3A) at 20MHz bandwidth

DATA SHEET AND USECASE

Key Features:

• Input Voltage: 6V to 24V DC
• Output Voltage: 5.1V to 5.2V DC
• Maximum Output Current: 3A (continuous); for prolonged use at full load, enhanced heat dissipation is recommended
• Conversion Efficiency: Up to 97.5% (e.g., 6.5V input to 5V output at 0.7A)
• Switching Frequency: 500kHz
• Output Ripple: Approximately 10mV (12V input to 5V output at 3A)

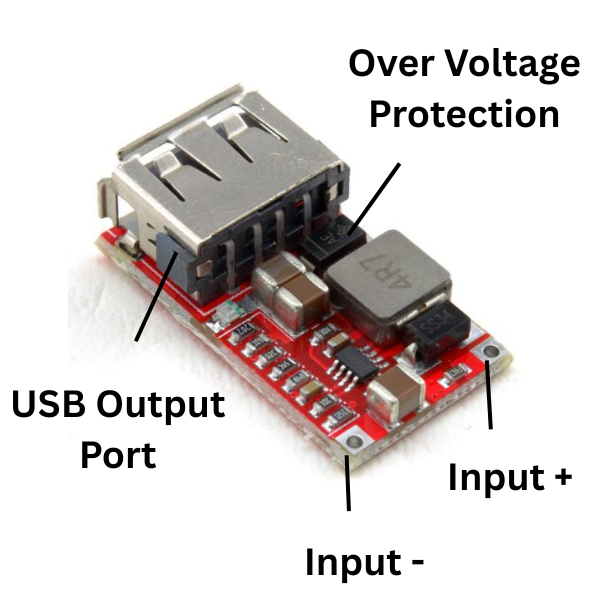

• Protections:
  • Input reverse polarity protection
  • Output overvoltage protection (includes a 1.5A fuse and a 300W TVS diode)
  • Output short circuit protection
