Description

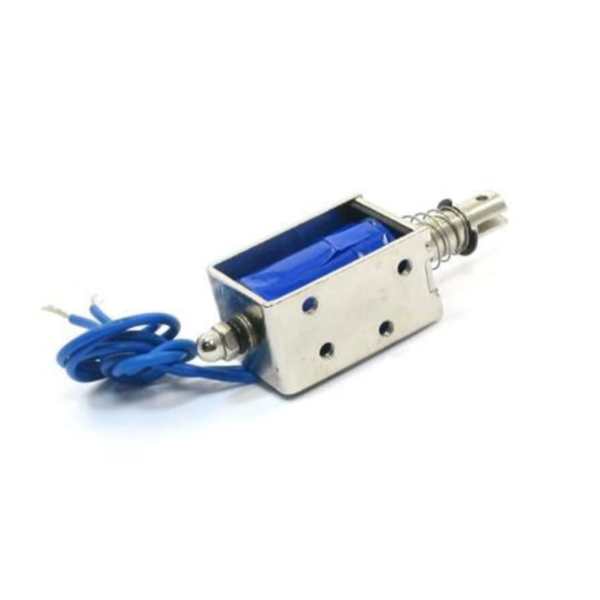

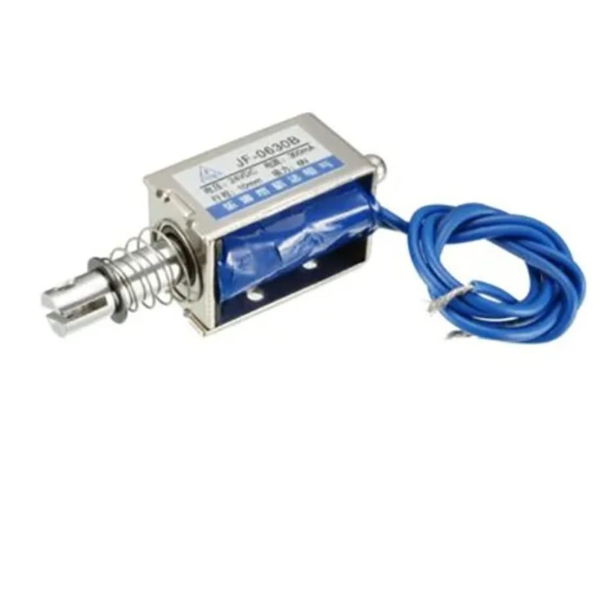

The JF-0630B is a compact and powerful DC solenoid electromagnet designed for various applications requiring linear motion. It operates on a 24V DC supply and draws a current of 300mA, generating a pushing force of 6N. The solenoid has a stroke length of 10mm and features a push-pull configuration, allowing it to move in both directions.
Key Features
- Compact Design: Small and lightweight, suitable for space-constrained applications.
- Powerful Performance: Generates a substantial pushing force of 6N.
- Reliable Operation: Designed for long-term durability and consistent performance.
- Push-Pull Configuration: Capable of moving in both directions.
- Easy Installation: Simple mounting options for various applications.
Applications
- Door Locks: Used in electric door locks for homes, offices, and commercial buildings.
- Vending Machines: Controls dispensing mechanisms for products like snacks and drinks.
- Home Appliances: Found in various appliances, such as washing machines and refrigerators.
- Industrial Automation: Used in various industrial processes and machinery.
- Robotics: Employed in robotic systems for precise movements and control.
DATA SHEET AND USECASE
Key Specifications:
- Model: JF-0630B
- Rated Voltage: 24V DC
- Rated Current: 300mA
- Stroke (Travel Distance): 10mm
- Force: 6 Newtons
- Operation Mode: Push-Pull
- Body Dimensions: 30mm (Length) x 14mm (Width) x 19mm (Height)
- Mounting Hole: M2
- Shaft Hole Diameter: 3mm
- Weight: Approximately 46 grams
