Description:

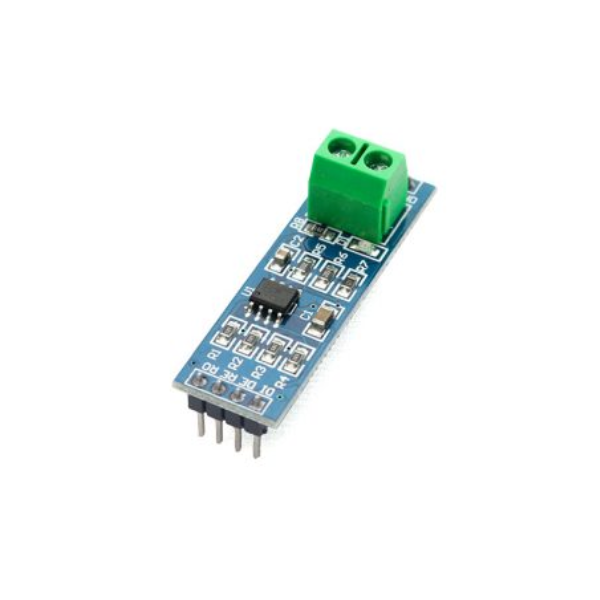

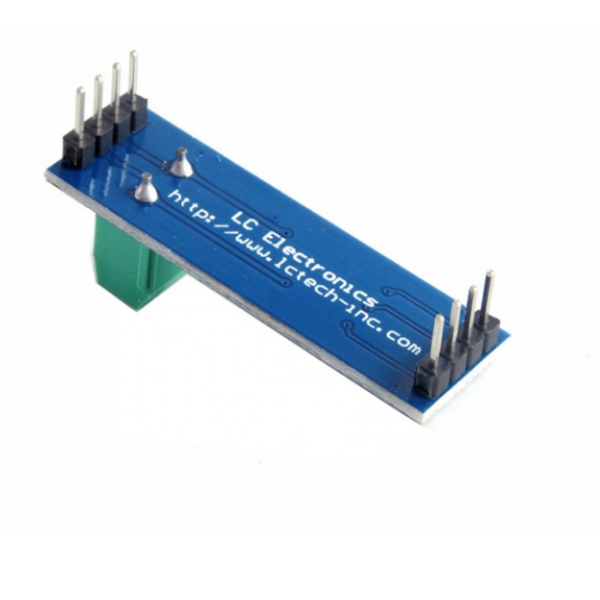

The MAX485 TTL To RS485 Module converts TTL signal to RS485 for long range, high data rate error prone differential communication. Digital communications networks implementing the EIA-485 standard can be used effectively over long distances and in electrically noisy environments.
Multiple receivers may be connected to such a network in a linear, multi-drop configuration. These characteristics make such networks useful in industrial environments and similar applications.
Features:
- On-board MAX485 chip, A low power consumption for the RS-485 communication, slew-rate limited transceiver.
- A low power consumption for the RS-485 communication

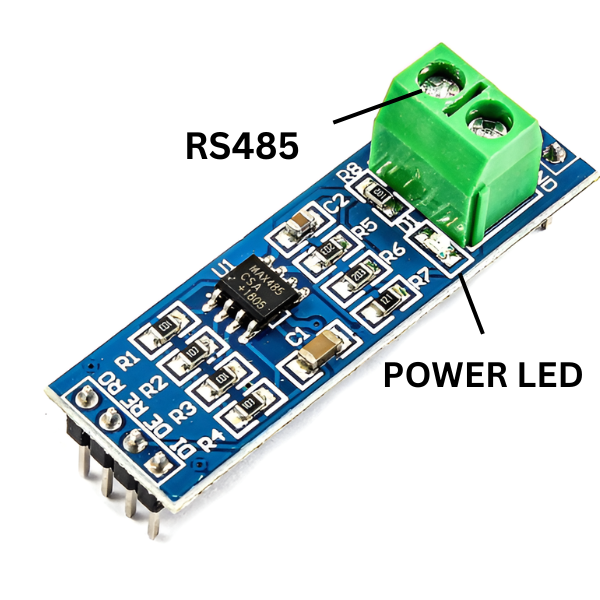

- Onboard then 5.08 (mm) pitch 2P terminal to facilitate RS-485 communication wiring.
- Slew-rate limited transceiver
- All pins of the chip have been lead to can be controlled through the microcontroller.
- Convenient RS-485 communication wiring
- Multiple Units can be connected to the same RS-485 bus wiring.
- All Chip pins are brought out for proper controls
Package Include:
DATA SHEET AND USECASE
Key Specification:
- Low Power Consumption: Operates with a quiescent current ranging from 120µA to 500µA, minimizing thermal dissipation.
- Single 5V Supply Voltage: Simplifies power requirements.
- High Data Rate: Supports data rates up to 2.5 Mbps, accommodating various communication needs.
- Extended Communication Distance: Capable of transmitting data over distances up to 1200 meters (4000 feet).
- Multi-Device Support: Allows up to 32 transceivers on a single bus, facilitating complex network configurations.
- Integrated Protection: Features short-circuit current limiting and thermal shutdown for enhanced system robustness.
