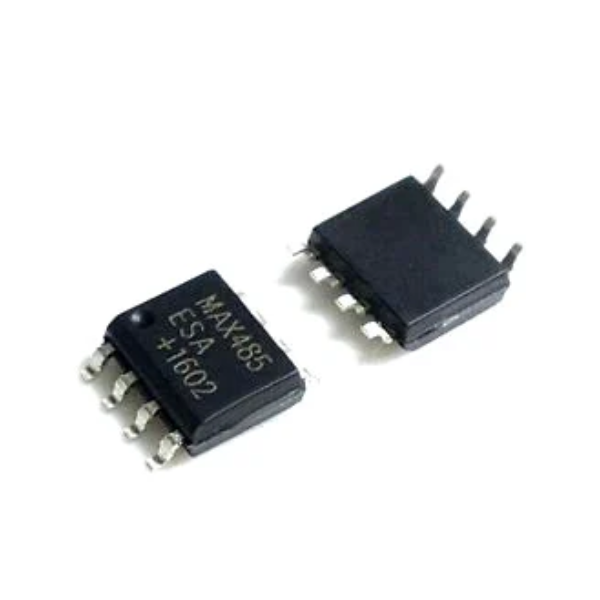

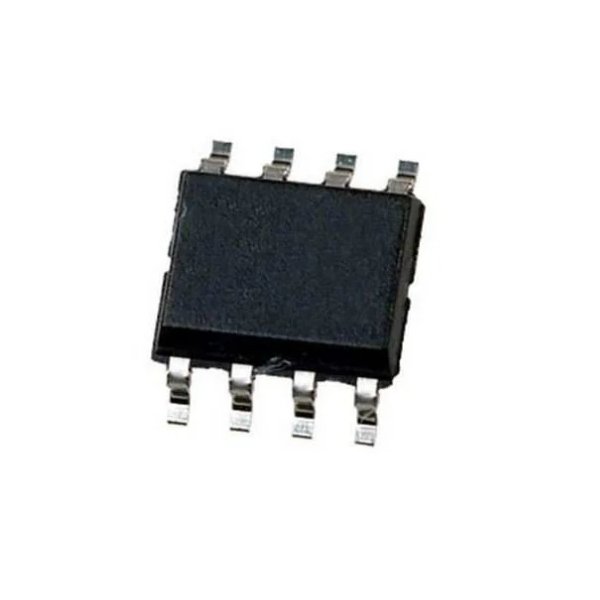

MAX485ESA SO-8 Transceiver Interface IC

MAX485ESA: A Versatile RS-485/RS-422 Transceiver

The MAX485ESA is a high-performance transceiver IC designed for reliable and efficient communication in various applications. It offers a combination of low power consumption, fast data transfer rates, and robust protection features.

Key Features:

• RS-485/RS-422 Compatibility: Supports both RS-485 and RS-422 communication protocols.
• Low Power Consumption: Draws minimal current, making it ideal for battery-powered or energy-efficient systems.
• High Data Transfer Rates: Capable of transmitting data at speeds up to 2.5Mbps.
• Robust Protection: Features short-circuit protection, thermal shutdown, and receiver fail-safe functionality.
• Versatile Applications: Suitable for a wide range of applications, including industrial control, communications, and data acquisition.

Specifications:

• Supply Voltage: Single 5V supply
• Current Consumption: 120µA to 500µA
• Data Rate: Up to 2.5Mbps
• Interface: RS-485/RS-422
• Package: SO-8
